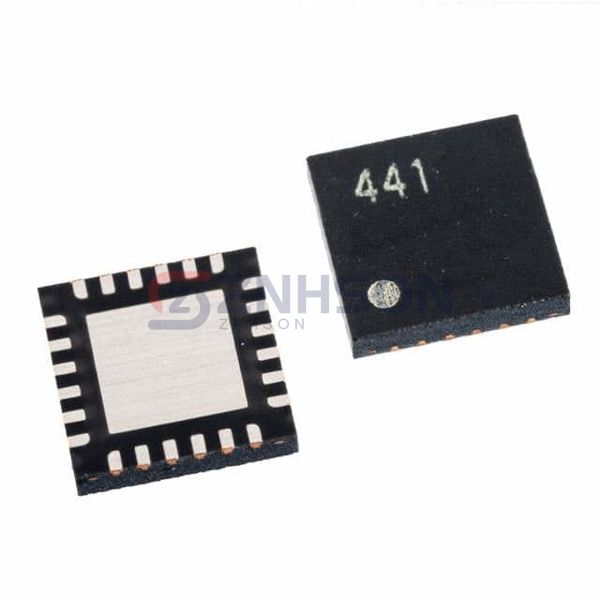

AN44140A-VB
Panasonic Electronic Components
Panasonic Electronic Components
IC MOTOR DRIVER
$0.00
Available to order
Reference Price (USD)
1,000+
$1.07532
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Panasonic Electronic Components AN44140A-VB series offers versatile full/half-bridge driver solutions for modern power electronics. Featuring dual MOSFET gate drivers with independent inputs, these PMICs provide exceptional flexibility in motor control and switched-mode power supply designs. Advanced protection mechanisms include undervoltage lockout and thermal shutdown, while the high-current drive capability ensures efficient switching of power transistors. Suitable for industrial, automotive, and consumer applications. Request technical documentation or samples through our quick inquiry form.
Specifications
- Product Status: Obsolete
- Output Configuration: Half Bridge (3)
- Applications: DC Motors, General Purpose
- Interface: Logic
- Load Type: Inductive
- Technology: Power MOSFET
- Rds On (Typ): 1.2Ohm
- Current - Output / Channel: -
- Current - Peak Output: -
- Voltage - Supply: 6V ~ 26.4V
- Voltage - Load: 6V ~ 26.4V
- Operating Temperature: -40°C ~ 95°C (TA)
- Features: -
- Fault Protection: Current Limiting, Over Temperature, Over Voltage, UVLO
- Mounting Type: Surface Mount
- Package / Case: 24-WFBGA
- Supplier Device Package: 24-QFN (4x4)
