AP1016AEN
Asahi Kasei Microdevices/AKM
Asahi Kasei Microdevices/AKM

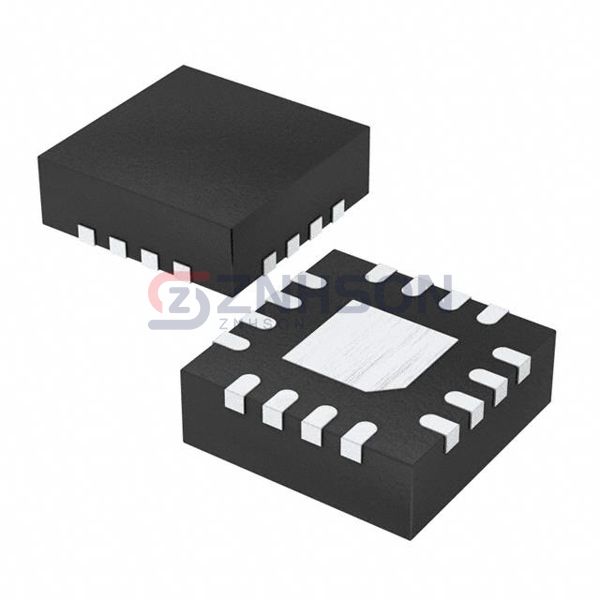

IC MOTOR DRIVER 9V 16QFN
$1.56
Available to order
Reference Price (USD)
5,000+
$0.51870
10,000+
$0.49920
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Asahi Kasei Microdevices/AKM AP1016AEN series offers versatile full/half-bridge driver solutions for modern power electronics. Featuring dual MOSFET gate drivers with independent inputs, these PMICs provide exceptional flexibility in motor control and switched-mode power supply designs. Advanced protection mechanisms include undervoltage lockout and thermal shutdown, while the high-current drive capability ensures efficient switching of power transistors. Suitable for industrial, automotive, and consumer applications. Request technical documentation or samples through our quick inquiry form.
Specifications
- Product Status: Not For New Designs
- Output Configuration: Half Bridge (4)
- Applications: General Purpose, Stepper Motors
- Interface: Logic
- Load Type: Inductive
- Technology: Power MOSFET
- Rds On (Typ): 270mOhm LS, 270mOhm HS
- Current - Output / Channel: 1A
- Current - Peak Output: 1.4A
- Voltage - Supply: 2.7V ~ 5.5V
- Voltage - Load: 2V ~ 9V
- Operating Temperature: -40°C ~ 150°C (TJ)
- Features: -
- Fault Protection: Over Temperature, UVLO
- Mounting Type: Surface Mount
- Package / Case: 16-UFQFN Exposed Pad
- Supplier Device Package: 16-QFN (3x3)
