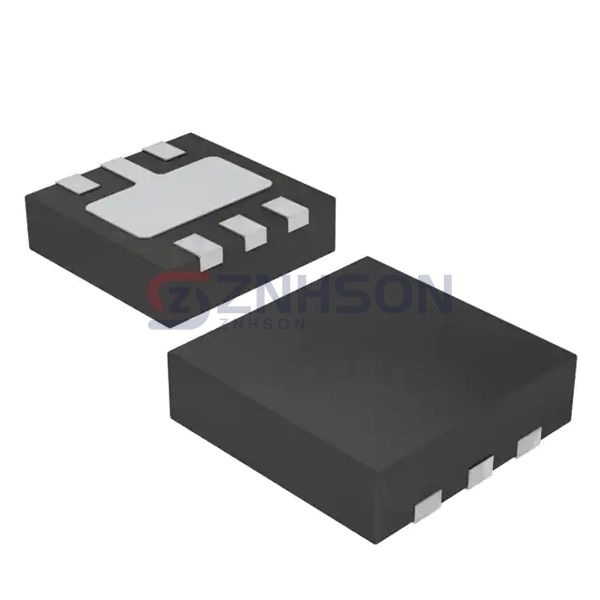

AP22814ASN-7
Diodes Incorporated
Diodes Incorporated
IC PWR SWITCH P-CHAN 1:1 6UDFN
$0.50
Available to order
Reference Price (USD)
3,000+
$0.17500
6,000+
$0.16500
15,000+
$0.15500
30,000+
$0.14800
75,000+
$0.14500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the Diodes Incorporated AP22814ASN-7 for advanced Power Distribution Switches and Load Drivers that meet the highest standards of quality and innovation. With its comprehensive protection features, high efficiency, and compact form factor, this IC is perfect for modern electronic designs. Whether for automotive, industrial, or consumer applications, the AP22814ASN-7 delivers consistent and reliable performance. Request more information now and let us assist you in optimizing your power solutions.
Specifications
- Product Status: Active
- Switch Type: USB Switch
- Number of Outputs: 1
- Ratio - Input:Output: 1:1
- Output Configuration: High Side
- Output Type: P-Channel
- Interface: On/Off
- Voltage - Load: 2.7V ~ 5.5V
- Voltage - Supply (Vcc/Vdd): Not Required
- Current - Output (Max): 3A
- Rds On (Typ): 50mOhm
- Input Type: Non-Inverting
- Features: Load Discharge, Status Flag
- Fault Protection: Current Limiting (Fixed), Over Temperature, UVLO
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Supplier Device Package: U-DFN2020-6
- Package / Case: 6-UDFN Exposed Pad
