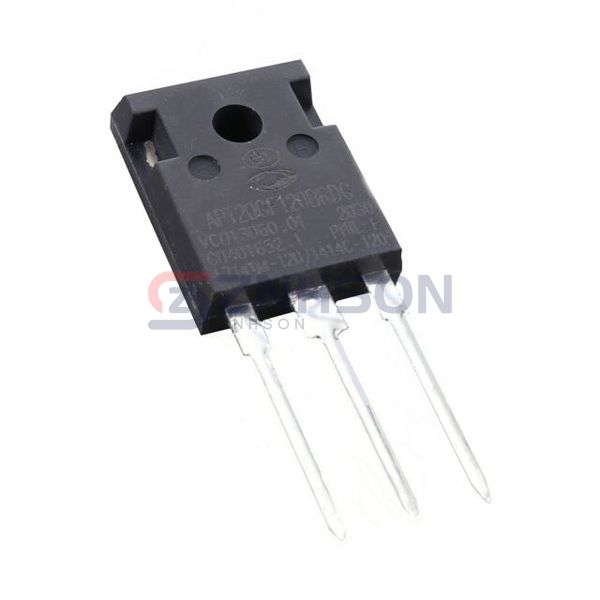

APT20GF120BRDG
Microchip Technology
Microchip Technology
IGBT NPT COMBI 1200V 20A TO-247
$7.16
Available to order
Reference Price (USD)
1+
$7.16000
500+
$7.0884
1000+
$7.0168
1500+
$6.9452
2000+
$6.8736
2500+
$6.802
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APT20GF120BRDG Single IGBT by Microchip Technology is a game-changer for energy-efficient systems. Ideal for HVAC, robotics, and power distribution, it boasts fast turn-off times and low gate drive requirements. Its advanced technology reduces energy waste and improves system longevity. Trust Microchip Technology for premium-quality transistors backed by exceptional support. Request a sample or quote now to start your next innovation!
Specifications
- Product Status: Active
- IGBT Type: NPT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 32 A
- Current - Collector Pulsed (Icm): 64 A
- Vce(on) (Max) @ Vge, Ic: 3.2V @ 15V, 15A
- Power - Max: 200 W
- Switching Energy: -
- Input Type: Standard
- Gate Charge: 140 nC
- Td (on/off) @ 25°C: 17ns, 93ns
- Test Condition: 792V, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): 85 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
