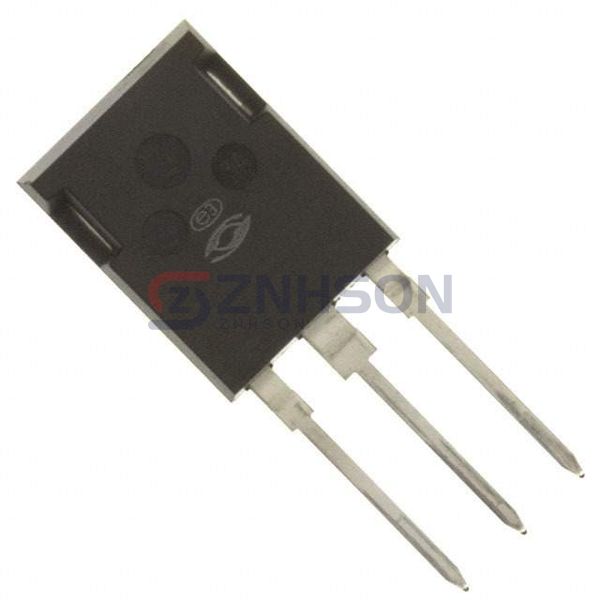

APT75GN120B2G
Microchip Technology
Microchip Technology
IGBT 1200V 200A 833W TMAX
$16.36
Available to order
Reference Price (USD)
34+
$14.60265
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your power electronics with APT75GN120B2G Single IGBTs by Microchip Technology, engineered for precision and durability. Perfect for inverters, welding equipment, and automotive applications, these transistors provide fast switching speeds and excellent thermal stability. Key features include high voltage tolerance, low power loss, and compact design. Trust Microchip Technology for top-quality components that meet global standards. Request a quote now to learn more about how APT75GN120B2G can enhance your projects.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 200 A
- Current - Collector Pulsed (Icm): 225 A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 75A
- Power - Max: 833 W
- Switching Energy: 8045µJ (on), 7640µJ (off)
- Input Type: Standard
- Gate Charge: 425 nC
- Td (on/off) @ 25°C: 60ns/620ns
- Test Condition: 800V, 75A, 1Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3 Variant
- Supplier Device Package: -
