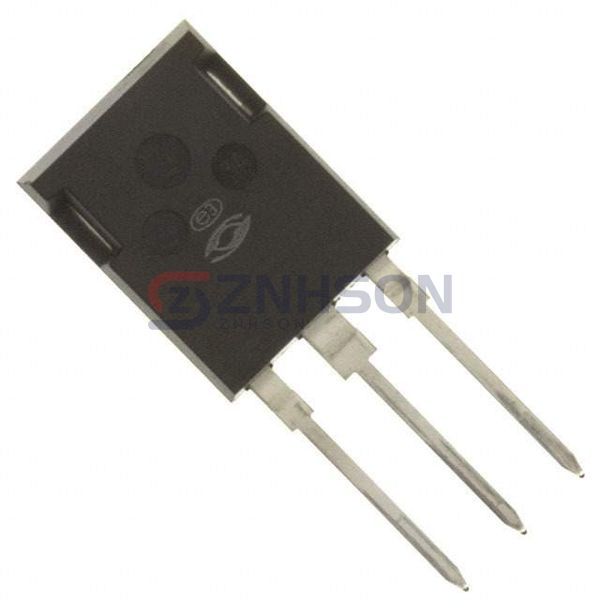

APT75GP120B2G
Microchip Technology
Microchip Technology
IGBT 1200V 100A 1042W TMAX
$27.05
Available to order
Reference Price (USD)
1+
$27.42000
10+
$25.36100
25+
$23.30480
100+
$21.65990
250+
$19.87776
500+
$18.91814
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APT75GP120B2G Single IGBT by Microchip Technology sets the standard for power semiconductor excellence. Designed for applications like electric vehicles and industrial machinery, it offers high current density and minimal thermal resistance. Key benefits include easy integration, superior durability, and compliance with international certifications. Partner with Microchip Technology for cutting-edge solutions tailored to your needs. Contact us now to discuss specifications and delivery options!
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 100 A
- Current - Collector Pulsed (Icm): 300 A
- Vce(on) (Max) @ Vge, Ic: 3.9V @ 15V, 75A
- Power - Max: 1042 W
- Switching Energy: 1620µJ (on), 2500µJ (off)
- Input Type: Standard
- Gate Charge: 320 nC
- Td (on/off) @ 25°C: 20ns/163ns
- Test Condition: 600V, 75A, 5Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3 Variant
- Supplier Device Package: -
