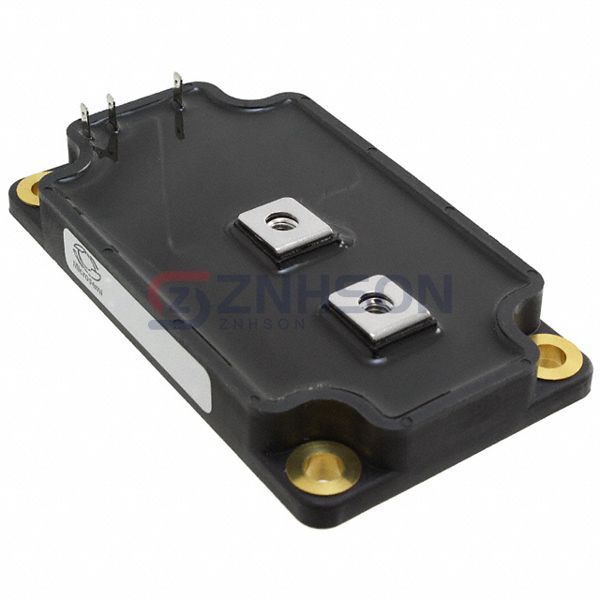

APTGL475U120DAG
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 610A 2307W SP6
$249.14
Available to order
Reference Price (USD)
100+
$129.16190
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize efficiency in your power electronics with the APTGL475U120DAG IGBT Module by Microchip Technology. Perfect for elevators and conveyor systems, it features low switching losses and high noise immunity. Microchip Technology leads in innovation contact us for expert support and competitive pricing.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 610 A
- Power - Max: 2307 W
- Vce(on) (Max) @ Vge, Ic: 2.2V @ 15V, 400A
- Current - Collector Cutoff (Max): 4 mA
- Input Capacitance (Cies) @ Vce: 24.6 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SP6
- Supplier Device Package: SP6
