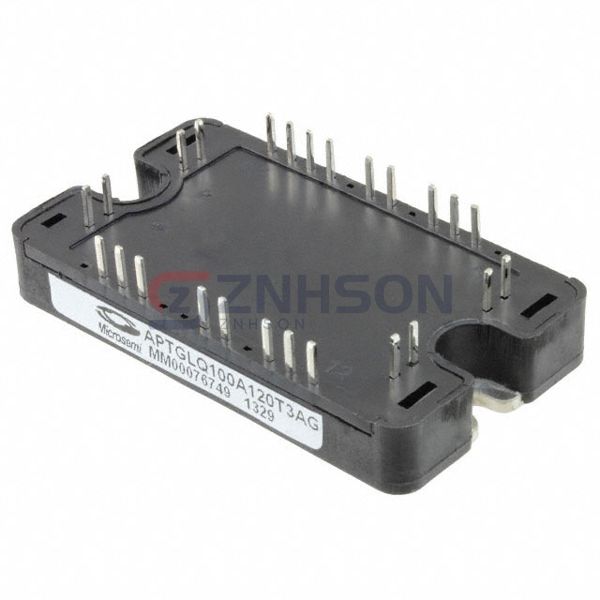

APTGLQ100A120T3AG
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 185A 650W SP3
$116.25
Available to order
Reference Price (USD)
100+
$65.01680
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microchip Technology's APTGLQ100A120T3AG IGBT Module is engineered for high-power applications requiring stability and longevity. Key features include integrated temperature monitoring and low EMI emissions, perfect for medical devices and traction systems. Choose quality contact us for technical specifications and lead times.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 185 A
- Power - Max: 650 W
- Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 100A
- Current - Collector Cutoff (Max): 50 µA
- Input Capacitance (Cies) @ Vce: 6.15 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: SP3
- Supplier Device Package: SP3
