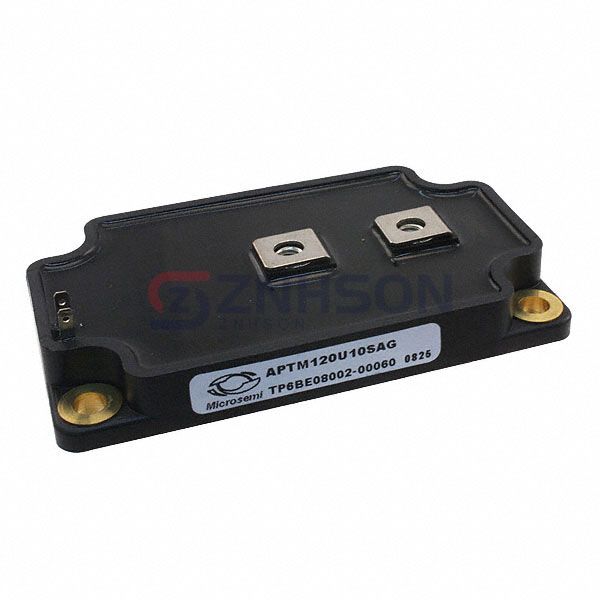

APTM120U10SAG
Microchip Technology
Microchip Technology
MOSFET N-CH 1200V 116A SP6
$337.48
Available to order
Reference Price (USD)
100+
$189.40580
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with APTM120U10SAG by Microchip Technology, a top-tier choice in Discrete Semiconductor Products. Specifically crafted for Transistors - FETs, MOSFETs - Single applications, this product offers superior power handling and energy efficiency. Key features include high voltage tolerance, minimal power loss, and robust durability, making it perfect for switching and amplification tasks. Whether for industrial machinery, renewable energy systems, or portable devices, APTM120U10SAG ensures reliable operation. Ready to integrate this component into your project? Submit an inquiry now for pricing and availability!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 116A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 120mOhm @ 58A, 10V
- Vgs(th) (Max) @ Id: 5V @ 20mA
- Gate Charge (Qg) (Max) @ Vgs: 1100 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 28900 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 3290W (Tc)
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Supplier Device Package: SP6
- Package / Case: SP6
