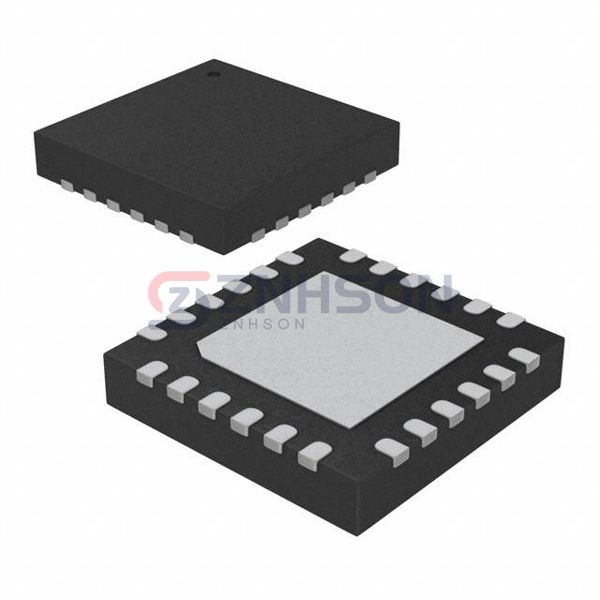

ATA6836C-PXQW-1
Microchip Technology
Microchip Technology
IC HALF-BRIDGE DRVR SPI 24QFN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Microchip Technology ATA6836C-PXQW-1 series offers versatile full/half-bridge driver solutions for modern power electronics. Featuring dual MOSFET gate drivers with independent inputs, these PMICs provide exceptional flexibility in motor control and switched-mode power supply designs. Advanced protection mechanisms include undervoltage lockout and thermal shutdown, while the high-current drive capability ensures efficient switching of power transistors. Suitable for industrial, automotive, and consumer applications. Request technical documentation or samples through our quick inquiry form.
Specifications
- Product Status: Active
- Output Configuration: Half Bridge (6)
- Applications: Bulbs, DC Motors, Resistors
- Interface: SPI
- Load Type: Inductive, Capacitive, Resistive
- Technology: Power MOSFET
- Rds On (Typ): 1Ohm LS, 1Ohm HS
- Current - Output / Channel: 650mA
- Current - Peak Output: -
- Voltage - Supply: 4.75V ~ 5.25V
- Voltage - Load: 5.5V ~ 40V
- Operating Temperature: -40°C ~ 150°C (TJ)
- Features: Status Flag
- Fault Protection: Open Load Detect, Over Temperature, Short Circuit, UVLO
- Mounting Type: Surface Mount
- Package / Case: 24-VQFN Exposed Pad
- Supplier Device Package: 24-VQFN (5x5)
