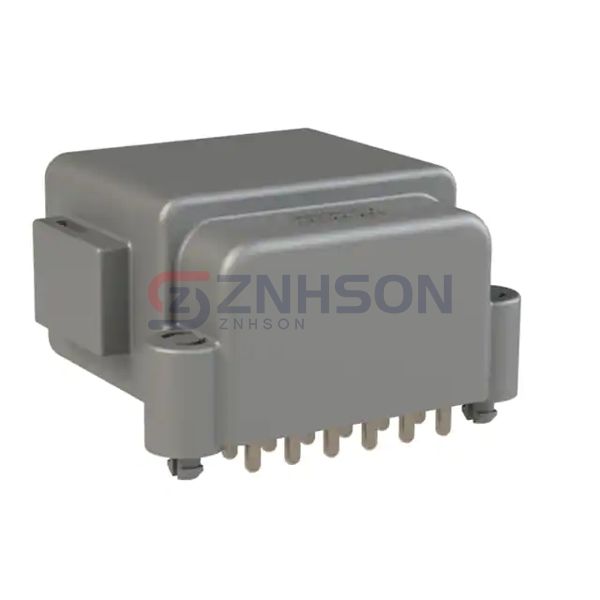

ATF13-12PA-BM13
Amphenol Sine Systems Corp
Amphenol Sine Systems Corp
BOARD MOUNT HEADER, RIGHT ANGLE,
$9.03
Available to order
Reference Price (USD)
1+
$9.03000
500+
$8.9397
1000+
$8.8494
1500+
$8.7591
2000+
$8.6688
2500+
$8.5785
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with ATF13-12PA-BM13 Amphenol Sine Systems Corp Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Male Pin
- Pitch - Mating: 0.174" (4.42mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: -
- Insulation Height: 0.874" (22.20mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Mounting Flange
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Material Flammability Rating: -
- Insulation Color: Gray
- Current Rating (Amps): 13A
- Voltage Rating: 250VDC
