AZ2280-1C-120AEF
American Zettler
American Zettler
RELAY GEN PURPOSE SPDT 20A 120V
$4.07
Available to order
Reference Price (USD)
1+
$4.07000
500+
$4.0293
1000+
$3.9886
1500+
$3.9479
2000+
$3.9072
2500+
$3.8665
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The American Zettler AZ2280-1C-120AEF Power Relay series delivers exceptional over-2A switching capability for commercial and industrial use. Featuring low power consumption, high dielectric strength, and compact form factors. Widely used in telecom infrastructure, medical devices, and power supply units. Send us your requirements for customized relay solutions!
Specifications
- Product Status: Active
- Mounting Type: Chassis Mount
- Coil Voltage: 120VAC
- Contact Form: SPDT (1 Form C)
- Contact Rating (Current): 20 A
- Switching Voltage: 277VAC, 28VDC - Max
- Coil Current: 48 mA
- Coil Type: Non Latching
- Features: -
- Termination Style: Quick Connect - 0.187"/0.250"
- Seal Rating: Sealed - Fully
- Coil Insulation: Class F
- Must Operate Voltage: 102 VAC
- Must Release Voltage: 24 VAC
- Operate Time: 15 ms
- Release Time: 10 ms
- Operating Temperature: -55°C ~ 60°C
- Contact Material: Silver Cadmium Oxide (AgCdO)
- Relay Type: General Purpose
Related Products
CIT Relay and Switch
J1511CP12VAC1.2D
Schneider Electric
RPM42F7
Schneider Electric
RXM3AB1ED
Carlo Gavazzi Inc.
RCI002A24V
Panasonic Electric Works
ADZS22124
Omron Automation and Safety

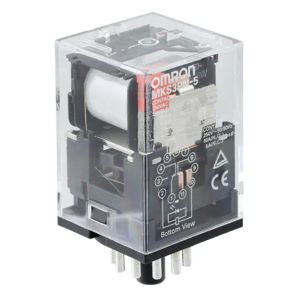

MKS3PN-5 AC100
Schneider Electric

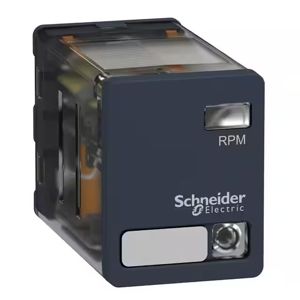

RPM23FD
Finder Relays, Inc.

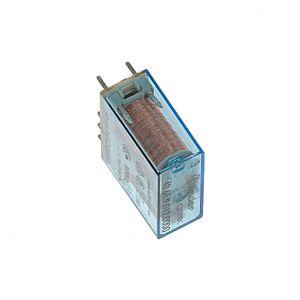

40.61.9.012.0000
Omron Electronics Inc-EMC Div

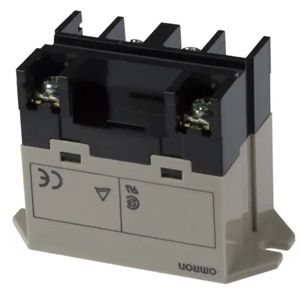

G7L-2A-BUB-CB-AC24

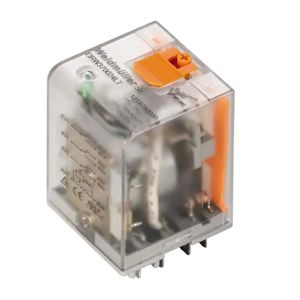

Weidmüller
