B65513J0000R097
EPCOS - TDK Electronics
EPCOS - TDK Electronics

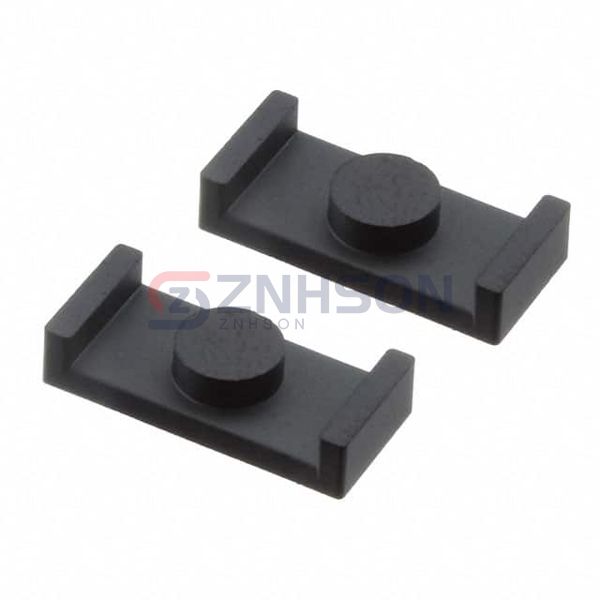

FERRITE CORE ER 1.5UH N97 2PCS
$1.76
Available to order
Reference Price (USD)
1+
$1.33000
10+
$1.20100
25+
$0.89000
50+
$0.84540
100+
$0.75630
250+
$0.71184
920+
$0.66735
1,840+
$0.57837
5,520+
$0.55613
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic systems with EPCOS - TDK Electronics B65513J0000R097 Ferrite Cores, designed to deliver superior magnetic performance and durability. These cores are widely used in power conversion, signal processing, and noise filtering applications. Their high-frequency capabilities and thermal resilience make them ideal for advanced electronics. Whether for IoT devices or automotive applications, our Ferrite Cores stand out. Request a consultation with our experts to find the best solution for your needs!
Specifications
- Product Status: Active
- Core Type: ER
- Supplier Device Package: ER 14.5 x 6
- Material: N97
- Diameter: -
- Inductance Factor (Al): 1.5 µH
- Tolerance: -20%, +30%
- Gap: Ungapped
- Effective Permeability (µe): 1290
- Initial Permeability (µi): 2300
- Core Factor (ΣI/A) mm-1: 1.1
- Effective Length (le) mm: 19
- Effective Area (Ae) mm²: 17.6
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 333
- Finish: Uncoated
- Height: 0.116" (2.95mm)
- Length: 0.571" (14.50mm)
- Width: 0.264" (6.70mm)
