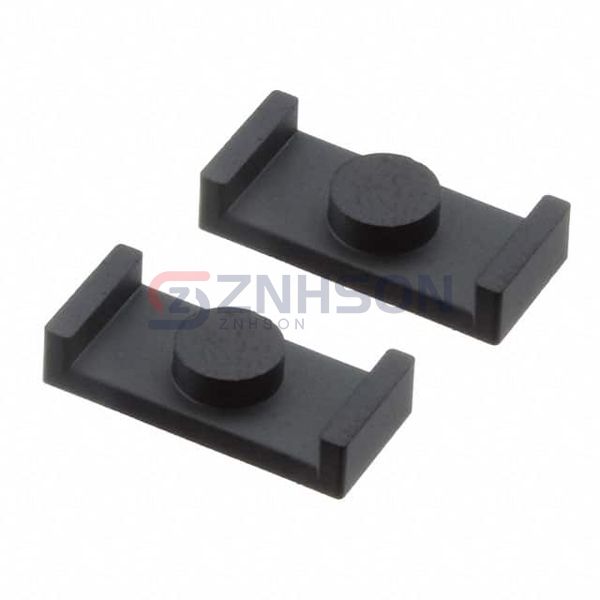

B65513J0000R608
EPCOS - TDK Electronics
EPCOS - TDK Electronics
ER14.5/6-PC200
$1.63
Available to order
Reference Price (USD)
1+
$1.02000
10+
$0.91400
25+
$0.67680
50+
$0.64300
100+
$0.57530
250+
$0.54144
500+
$0.50760
1,000+
$0.43992
5,000+
$0.42300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with premium EPCOS - TDK Electronics B65513J0000R608 Ferrite Cores, designed for superior magnetic performance and thermal stability. Perfect for applications in switch-mode power supplies, RF transformers, and noise filters. These cores offer low core loss and high permeability, making them a reliable choice for demanding environments. Whether for industrial, medical, or consumer electronics, our Ferrite Cores deliver unmatched quality. Request a sample or inquire about bulk pricing now!
Specifications
- Product Status: Active
- Core Type: ER
- Supplier Device Package: ER 14.5 x 6
- Material: PC200
- Diameter: -
- Inductance Factor (Al): -
- Tolerance: -20%, +30%
- Gap: Ungapped
- Effective Permeability (µe): 640
- Initial Permeability (µi): 800
- Core Factor (ΣI/A) mm-1: 1.08
- Effective Length (le) mm: 19
- Effective Area (Ae) mm²: 17.6
- Minimum Core Cross Section (Amin) mm²: 17.3
- Effective Magnetic Volume (Ve) mm³: 334
- Finish: Uncoated
- Height: 0.116" (2.95mm)
- Length: 0.571" (14.50mm)
- Width: 0.264" (6.70mm)
