B65523J0000R092
EPCOS - TDK Electronics
EPCOS - TDK Electronics

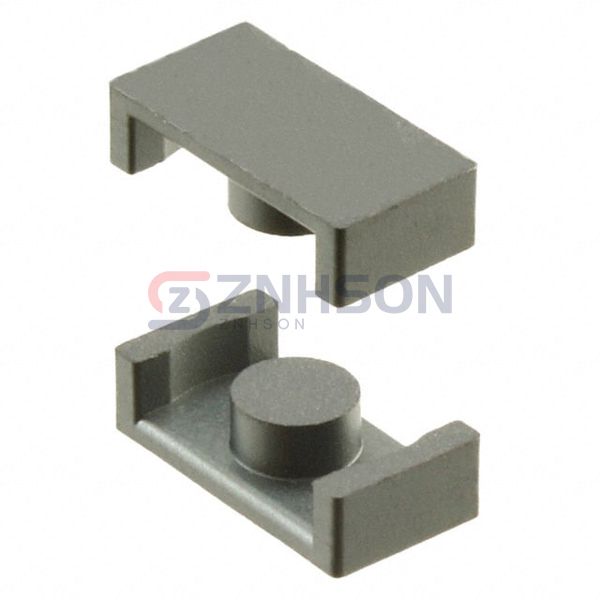

FERRITE CORE ER 660NH N92 2PCS
$1.60
Available to order
Reference Price (USD)
1+
$1.15000
10+
$1.03400
25+
$0.76600
50+
$0.72780
100+
$0.65110
250+
$0.61280
500+
$0.57450
1,000+
$0.49790
5,000+
$0.47875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with premium EPCOS - TDK Electronics B65523J0000R092 Ferrite Cores, designed for superior magnetic performance and thermal stability. Perfect for applications in switch-mode power supplies, RF transformers, and noise filters. These cores offer low core loss and high permeability, making them a reliable choice for demanding environments. Whether for industrial, medical, or consumer electronics, our Ferrite Cores deliver unmatched quality. Request a sample or inquire about bulk pricing now!
Specifications
- Product Status: Active
- Core Type: ER
- Supplier Device Package: ER 9.5 x 5
- Material: N92
- Diameter: -
- Inductance Factor (Al): 660 nH
- Tolerance: -20%, +30%
- Gap: Ungapped
- Effective Permeability (µe): 811
- Initial Permeability (µi): 1500
- Core Factor (ΣI/A) mm-1: 1.54
- Effective Length (le) mm: 13.6
- Effective Area (Ae) mm²: 8.81
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 120
- Finish: Uncoated
- Height: 0.098" (2.50mm)
- Length: 0.374" (9.50mm)
- Width: 0.197" (5.00mm)
