B65525J0000R049
EPCOS - TDK Electronics
EPCOS - TDK Electronics

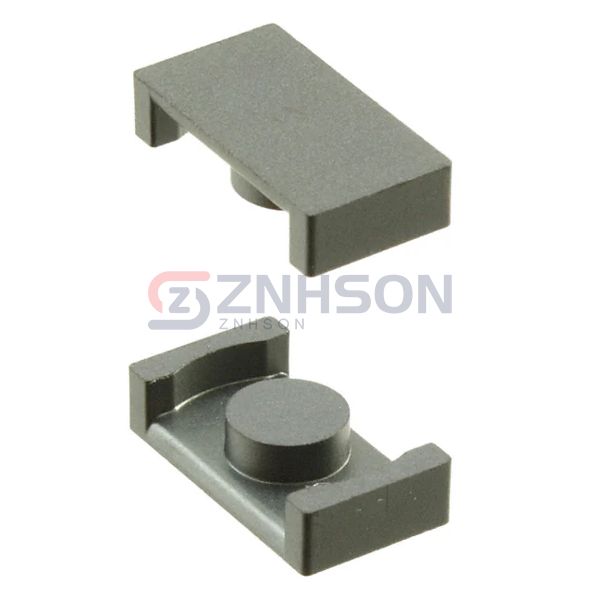

FERRITE CORE ER 800NH N49 2PCS
$2.07
Available to order
Reference Price (USD)
1,000+
$0.64519
3,000+
$0.62038
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic systems with EPCOS - TDK Electronics B65525J0000R049 Ferrite Cores, designed to deliver superior magnetic performance and durability. These cores are widely used in power conversion, signal processing, and noise filtering applications. Their high-frequency capabilities and thermal resilience make them ideal for advanced electronics. Whether for IoT devices or automotive applications, our Ferrite Cores stand out. Request a consultation with our experts to find the best solution for your needs!
Specifications
- Product Status: Active
- Core Type: ER
- Supplier Device Package: ER 11 x 5
- Material: N49
- Diameter: -
- Inductance Factor (Al): 800 nH
- Tolerance: -20%, +30%
- Gap: Ungapped
- Effective Permeability (µe): 715
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 1.1
- Effective Length (le) mm: 14.1
- Effective Area (Ae) mm²: 12.4
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 174
- Finish: Uncoated
- Height: 0.098" (2.50mm)
- Length: 0.433" (11.00mm)
- Width: 0.236" (6.00mm)
