B65525J0160A087
EPCOS - TDK Electronics
EPCOS - TDK Electronics

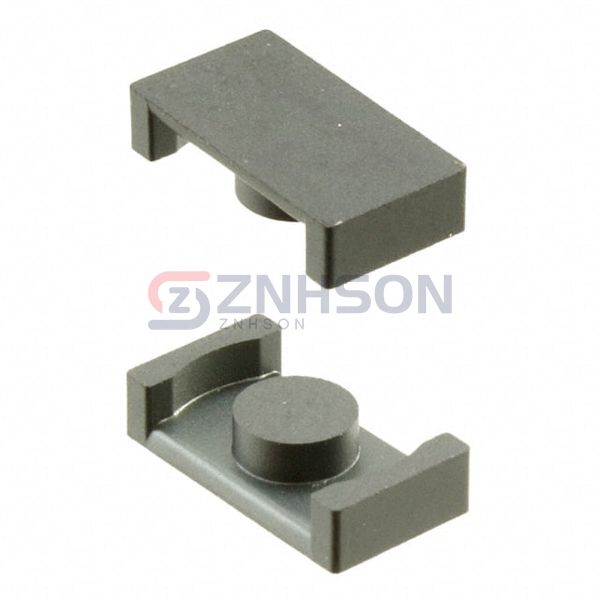

FERRITE CORE ER 160NH N87 2PCS
$1.35
Available to order
Reference Price (USD)
1+
$0.94000
10+
$0.84300
25+
$0.62440
50+
$0.59320
100+
$0.53070
250+
$0.49952
500+
$0.46830
1,000+
$0.40586
5,000+
$0.39025
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's performance with EPCOS - TDK Electronics B65525J0160A087 Ferrite Cores, the go-to solution for effective electromagnetic interference suppression. These cores are critical in designing efficient power converters, inductors, and high-frequency transformers. With excellent temperature stability and low hysteresis loss, they are perfect for aerospace, defense, and telecommunications applications. Get in touch with us to discuss how our Ferrite Cores can meet your project needs!
Specifications
- Product Status: Active
- Core Type: ER
- Supplier Device Package: ER 11 x 5
- Material: N87
- Diameter: -
- Inductance Factor (Al): 160 nH
- Tolerance: ±3%
- Gap: Gapped
- Effective Permeability (µe): 140
- Initial Permeability (µi): 2200
- Core Factor (ΣI/A) mm-1: 1.1
- Effective Length (le) mm: 14.1
- Effective Area (Ae) mm²: 12.4
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 174
- Finish: Uncoated
- Height: 0.098" (2.50mm)
- Length: 0.433" (11.00mm)
- Width: 0.236" (6.00mm)
