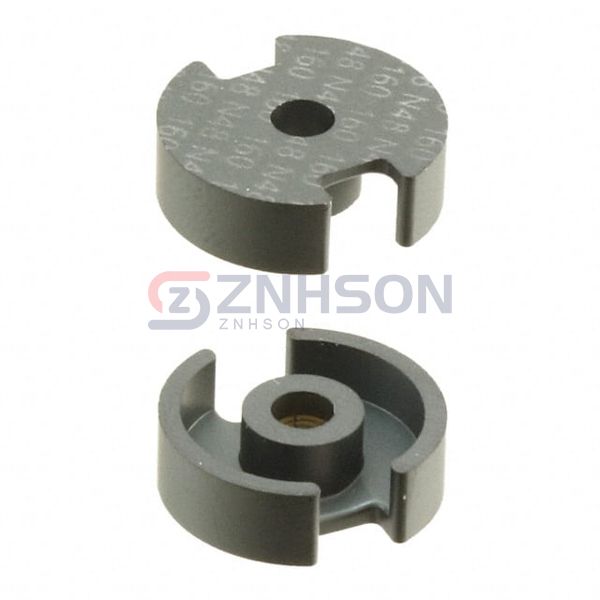

B65541T0160G048
EPCOS - TDK Electronics
EPCOS - TDK Electronics
FERRITE CORE P 160NH N48 2PCS
$3.71
Available to order
Reference Price (USD)
1+
$2.70000
10+
$2.32600
25+
$1.76760
50+
$1.67480
100+
$1.48860
250+
$1.39560
500+
$1.30256
1,000+
$1.19556
5,000+
$1.16300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve optimal power management with EPCOS - TDK Electronics B65541T0160G048 Ferrite Cores, crafted for high-performance energy conversion and filtering. These cores are essential in designing efficient power supplies, RF devices, and noise suppression circuits. With excellent thermal stability and low core loss, they are suitable for harsh operating conditions. Trusted by engineers worldwide for critical applications. Reach out to our team for expert advice and customized solutions!
Specifications
- Product Status: Active
- Core Type: P (Pot Core)
- Supplier Device Package: P 14 x 8
- Material: N48
- Diameter: 0.563" (14.30mm)
- Inductance Factor (Al): 160 nH
- Tolerance: ±3%
- Gap: Gapped
- Effective Permeability (µe): 102
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.8
- Effective Length (le) mm: 20
- Effective Area (Ae) mm²: 25
- Minimum Core Cross Section (Amin) mm²: 20
- Effective Magnetic Volume (Ve) mm³: 500
- Finish: Uncoated
- Height: 0.167" (4.25mm)
- Length: -
- Width: -
Related Products
Ferroxcube
TX20/10/7-3E6
Ferroxcube
U100/57/25-3C94
EPCOS - TDK Electronics
B66283G0000X149
EPCOS - TDK Electronics
B66365G0500X187
EPCOS - TDK Electronics
B65811D0315A048
EPCOS - TDK Electronics
B66365G0500X127
Ferroxcube

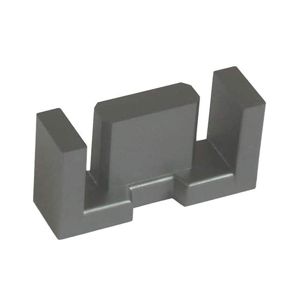

EFD20/10/7-3C96
EPCOS - TDK Electronics

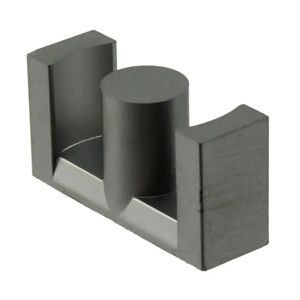

B66363G0200X187
EPCOS - TDK Electronics

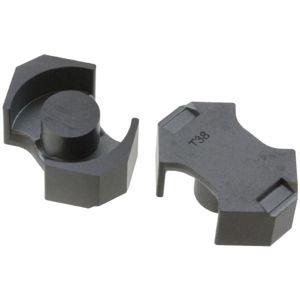

B65811J0000Y038
