B65671T0630A048
EPCOS - TDK Electronics
EPCOS - TDK Electronics

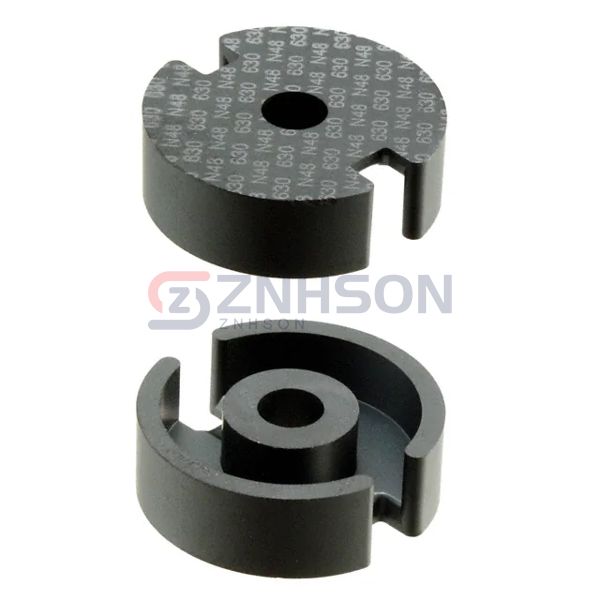

FERRITE CORE P 630NH N48 2PCS
$10.46
Available to order
Reference Price (USD)
1+
$7.38000
10+
$6.28600
25+
$4.78280
50+
$4.64620
100+
$4.09950
250+
$3.82620
500+
$3.55290
1,000+
$3.41625
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your electronic applications with EPCOS - TDK Electronics B65671T0630A048 Ferrite Cores, designed for exceptional magnetic properties and longevity. These cores are widely utilized in DC-DC converters, inductors, and high-frequency transformers. Their superior impedance characteristics make them perfect for suppressing electromagnetic noise. Whether for medical devices or automotive systems, our Ferrite Cores provide reliable solutions. Submit your inquiry today and let us help you find the perfect fit!
Specifications
- Product Status: Active
- Core Type: P (Pot Core)
- Supplier Device Package: P 26 x 16
- Material: N48
- Diameter: 1.024" (26.00mm)
- Inductance Factor (Al): 630 nH
- Tolerance: ±3%
- Gap: Gapped
- Effective Permeability (µe): 201
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.4
- Effective Length (le) mm: 37.2
- Effective Area (Ae) mm²: 93
- Minimum Core Cross Section (Amin) mm²: 76.5
- Effective Magnetic Volume (Ve) mm³: 3460
- Finish: Uncoated
- Height: 0.321" (8.15mm)
- Length: -
- Width: -
