B65686A0000R027
EPCOS - TDK Electronics
EPCOS - TDK Electronics

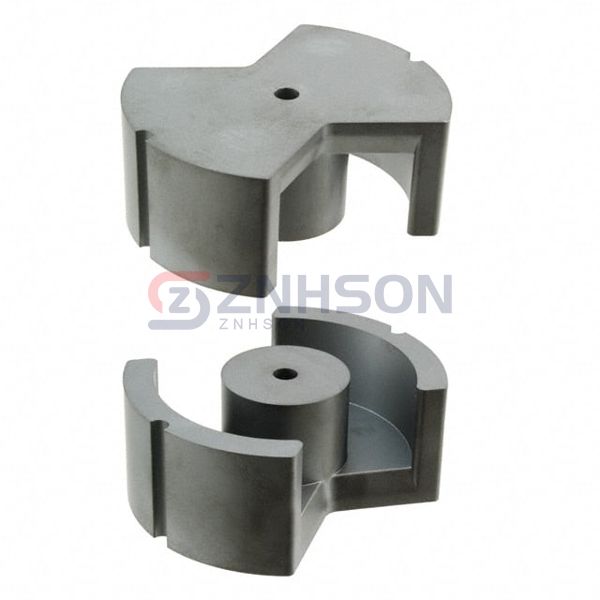

FERRITE CORE PM 10UH N27 2PCS
$83.57
Available to order
Reference Price (USD)
1+
$58.21000
10+
$51.73800
25+
$42.68400
50+
$41.39060
100+
$36.21670
250+
$33.62984
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit efficiency with EPCOS - TDK Electronics B65686A0000R027 Ferrite Cores, engineered for high-frequency applications and minimal energy loss. These cores are indispensable in power inductors, common-mode chokes, and broadband transformers. Their robust construction ensures durability and consistent performance. Suitable for renewable energy systems, automotive electronics, and more. Don't compromise on quality reach out to our sales team for personalized solutions and competitive pricing!
Specifications
- Product Status: Active
- Core Type: PM
- Supplier Device Package: PM 74 x 59
- Material: N27
- Diameter: 2.913" (74.00mm)
- Inductance Factor (Al): 10 µH
- Tolerance: -20%, +30%
- Gap: Ungapped
- Effective Permeability (µe): 1290
- Initial Permeability (µi): 2000
- Core Factor (ΣI/A) mm-1: 0.162
- Effective Length (le) mm: 128
- Effective Area (Ae) mm²: 790
- Minimum Core Cross Section (Amin) mm²: 630
- Effective Magnetic Volume (Ve) mm³: 101000
- Finish: Uncoated
- Height: 1.161" (29.50mm)
- Length: -
- Width: -
