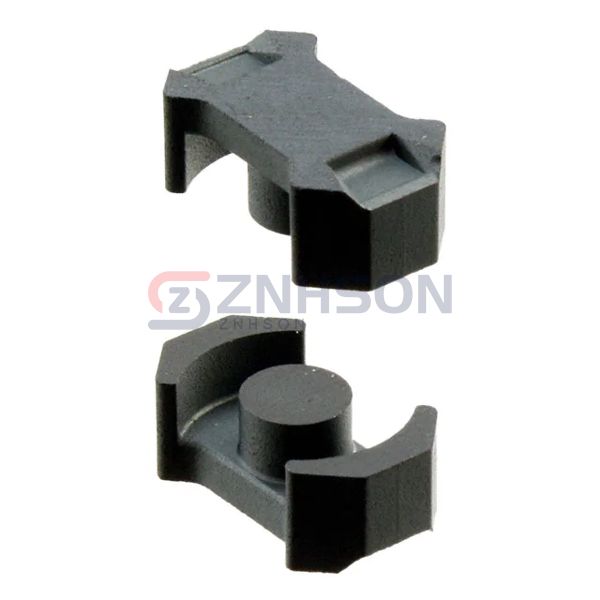

B65803P0000R049
EPCOS - TDK Electronics
EPCOS - TDK Electronics
FERRITE CORE RM 950NH N49 2PCS
$2.75
Available to order
Reference Price (USD)
1+
$1.91000
10+
$1.65000
25+
$1.25400
50+
$1.18780
100+
$1.05580
250+
$0.98984
500+
$0.92386
1,000+
$0.84797
5,000+
$0.82488
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Streamline your power electronics with EPCOS - TDK Electronics B65803P0000R049 Ferrite Cores, engineered for maximum efficiency and reliability. These cores are crucial in applications like solar inverters, motor drives, and wireless charging systems. Their excellent magnetic characteristics ensure low loss and high performance. Suitable for both commercial and industrial uses, our Ferrite Cores are a smart investment. Get in touch today to discuss your requirements and place an order!
Specifications
- Product Status: Active
- Core Type: RM
- Supplier Device Package: RM 4 LP
- Material: N49
- Diameter: -
- Inductance Factor (Al): 950 nH
- Tolerance: -20%, +30%
- Gap: Ungapped
- Effective Permeability (µe): 900
- Initial Permeability (µi): 1500
- Core Factor (ΣI/A) mm-1: 1.2
- Effective Length (le) mm: 17.3
- Effective Area (Ae) mm²: 14.5
- Minimum Core Cross Section (Amin) mm²: 11.3
- Effective Magnetic Volume (Ve) mm³: 251
- Finish: Uncoated
- Height: 0.154" (3.90mm)
- Length: 0.433" (11.00mm)
- Width: 0.181" (4.60mm)
Related Products
EPCOS - TDK Electronics
B64290L0022X065
EPCOS - TDK Electronics
B66387G1500X127
EPCOS - TDK Electronics
B66413G0000X187
EPCOS - TDK Electronics
B66233Q0100K187
EPCOS - TDK Electronics
B66289G0000X149
Ferroxcube
PLT38/25/3.8-3C95
EPCOS - TDK Electronics
B65843A0000R087
EPCOS - TDK Electronics
B65805N0315A048
EPCOS - TDK Electronics

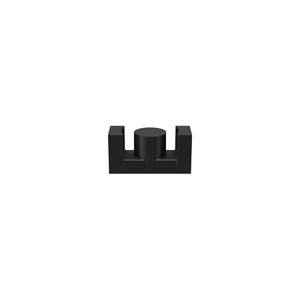

B66377G1000X127
