B65843A0100A057
EPCOS - TDK Electronics
EPCOS - TDK Electronics

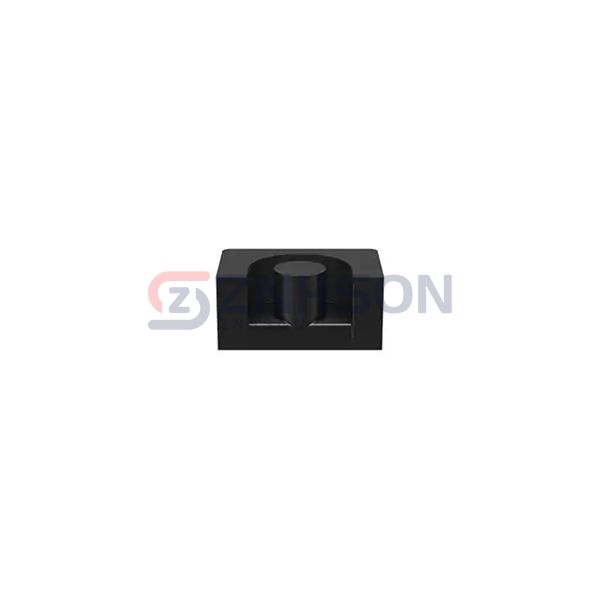

FERRITE CORE EP 100NH T57 2PCS
$0.98
Available to order
Reference Price (USD)
1,500+
$0.68157
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with premium EPCOS - TDK Electronics B65843A0100A057 Ferrite Cores, designed for superior magnetic performance and thermal stability. Perfect for applications in switch-mode power supplies, RF transformers, and noise filters. These cores offer low core loss and high permeability, making them a reliable choice for demanding environments. Whether for industrial, medical, or consumer electronics, our Ferrite Cores deliver unmatched quality. Request a sample or inquire about bulk pricing now!
Specifications
- Product Status: Active
- Core Type: EP
- Supplier Device Package: EP 13
- Material: T57
- Diameter: -
- Inductance Factor (Al): 100 nH
- Tolerance: ±3%
- Gap: Gapped
- Effective Permeability (µe): 99
- Initial Permeability (µi): 4000
- Core Factor (ΣI/A) mm-1: 1.24
- Effective Length (le) mm: 24.2
- Effective Area (Ae) mm²: 19.5
- Minimum Core Cross Section (Amin) mm²: 14.9
- Effective Magnetic Volume (Ve) mm³: 472
- Finish: Uncoated
- Height: 0.256" (6.50mm)
- Length: 0.504" (12.80mm)
- Width: 0.354" (9.00mm)
