B65881A0000R097
EPCOS - TDK Electronics
EPCOS - TDK Electronics
FERRITE CORE PQ 4.7UH N97 2PCS
$13.31
Available to order
Reference Price (USD)
1+
$9.00000
10+
$7.66600
25+
$5.83240
50+
$5.66600
100+
$4.99940
250+
$4.66608
500+
$4.33278
1,000+
$4.16613
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Streamline your power electronics with EPCOS - TDK Electronics B65881A0000R097 Ferrite Cores, engineered for maximum efficiency and reliability. These cores are crucial in applications like solar inverters, motor drives, and wireless charging systems. Their excellent magnetic characteristics ensure low loss and high performance. Suitable for both commercial and industrial uses, our Ferrite Cores are a smart investment. Get in touch today to discuss your requirements and place an order!
Specifications
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: PQ 35 x 35
- Material: N97
- Diameter: -
- Inductance Factor (Al): 4.7 µH
- Tolerance: -20%, +30%
- Gap: Ungapped
- Effective Permeability (µe): 1750
- Initial Permeability (µi): 2300
- Core Factor (ΣI/A) mm-1: 0.467
- Effective Length (le) mm: 79.2
- Effective Area (Ae) mm²: 169.7
- Minimum Core Cross Section (Amin) mm²: 146.5
- Effective Magnetic Volume (Ve) mm³: 13440
- Finish: Uncoated
- Height: 0.685" (17.40mm)
- Length: 1.382" (35.10mm)
- Width: 1.024" (26.00mm)
Related Products
EPCOS - TDK Electronics

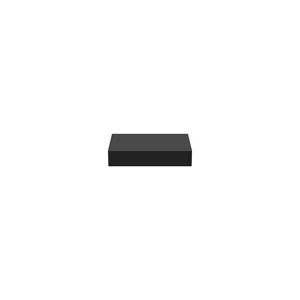

B67410A0201X195
EPCOS - TDK Electronics
B65651D0000R030
Fair-Rite Products Corp.

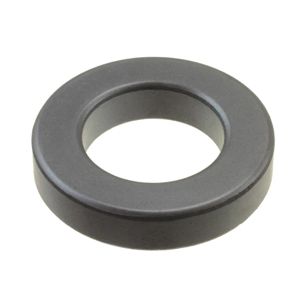

5952020801
