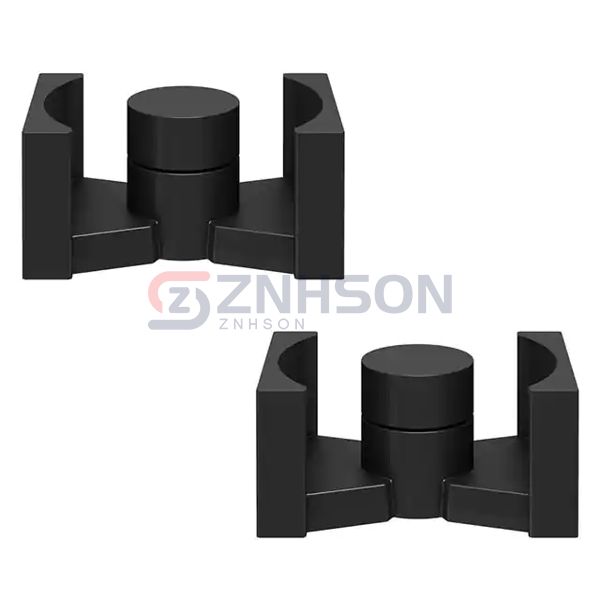

B65881Q0100K097
EPCOS - TDK Electronics
EPCOS - TDK Electronics
PQ35/35-N97-DG100
$13.71
Available to order
Reference Price (USD)
1+
$13.71000
500+
$13.5729
1000+
$13.4358
1500+
$13.2987
2000+
$13.1616
2500+
$13.0245
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic systems with EPCOS - TDK Electronics B65881Q0100K097 Ferrite Cores, designed to deliver superior magnetic performance and durability. These cores are widely used in power conversion, signal processing, and noise filtering applications. Their high-frequency capabilities and thermal resilience make them ideal for advanced electronics. Whether for IoT devices or automotive applications, our Ferrite Cores stand out. Request a consultation with our experts to find the best solution for your needs!
Specifications
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: PQ 35 x 35
- Material: N97
- Diameter: -
- Inductance Factor (Al): 100 nH
- Tolerance: ±10%
- Gap: Distributed Gapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.47
- Effective Length (le) mm: 79.7
- Effective Area (Ae) mm²: 171
- Minimum Core Cross Section (Amin) mm²: 161
- Effective Magnetic Volume (Ve) mm³: 13650
- Finish: Uncoated
- Height: 0.685" (17.40mm)
- Length: 1.382" (35.10mm)
- Width: 1.024" (26.00mm)
