B65881Q0150K097
EPCOS - TDK Electronics
EPCOS - TDK Electronics

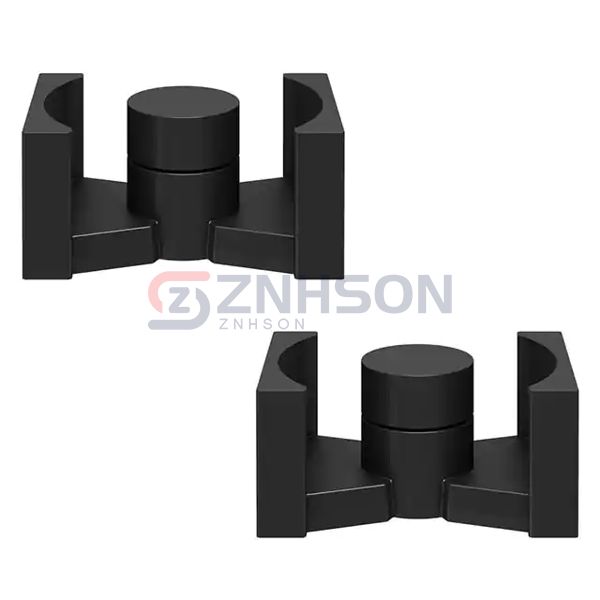

PQ35/35-N97-DG150
$13.71
Available to order
Reference Price (USD)
1+
$13.71000
500+
$13.5729
1000+
$13.4358
1500+
$13.2987
2000+
$13.1616
2500+
$13.0245
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your circuit designs with EPCOS - TDK Electronics B65881Q0150K097 Ferrite Cores, renowned for their high permeability and minimal energy dissipation. These cores are pivotal in creating efficient transformers, inductors, and chokes for various industries. Their robust performance in high-frequency applications makes them ideal for telecommunications and power electronics. Don't miss out on top-tier quality contact us now for pricing and availability details!
Specifications
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: PQ 35 x 35
- Material: N97
- Diameter: -
- Inductance Factor (Al): 150 nH
- Tolerance: ±10%
- Gap: Distributed Gapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.47
- Effective Length (le) mm: 79.7
- Effective Area (Ae) mm²: 171
- Minimum Core Cross Section (Amin) mm²: 161
- Effective Magnetic Volume (Ve) mm³: 13650
- Finish: Uncoated
- Height: 0.685" (17.40mm)
- Length: 1.382" (35.10mm)
- Width: 1.024" (26.00mm)
