B65945A0000X022
EPCOS - TDK Electronics
EPCOS - TDK Electronics

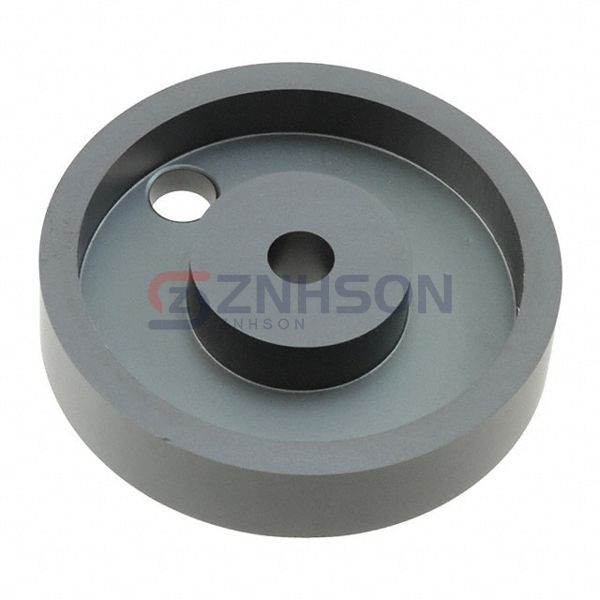

FERRITE CORE P N22
$47.32
Available to order
Reference Price (USD)
1+
$36.08000
10+
$32.28300
25+
$25.44680
50+
$24.68700
100+
$21.64860
250+
$19.97748
500+
$19.14192
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit efficiency with EPCOS - TDK Electronics B65945A0000X022 Ferrite Cores, engineered for high-frequency applications and minimal energy loss. These cores are indispensable in power inductors, common-mode chokes, and broadband transformers. Their robust construction ensures durability and consistent performance. Suitable for renewable energy systems, automotive electronics, and more. Don't compromise on quality reach out to our sales team for personalized solutions and competitive pricing!
Specifications
- Product Status: Active
- Core Type: P (Pot Core)
- Supplier Device Package: P Core Half 70 x 14.5
- Material: N22
- Diameter: 2.756" (70.00mm)
- Inductance Factor (Al): -
- Tolerance: -
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: -
- Effective Length (le) mm: -
- Effective Area (Ae) mm²: -
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: -
- Finish: Uncoated
- Height: 0.571" (14.50mm)
- Length: -
- Width: -
