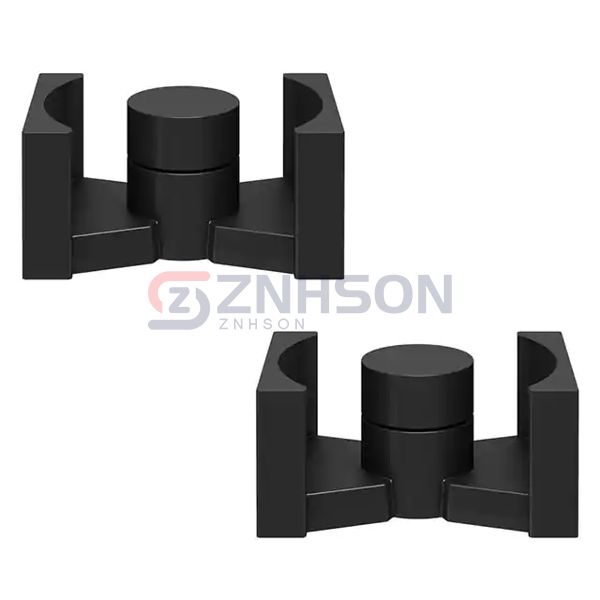

B65981Q0400K097
EPCOS - TDK Electronics
EPCOS - TDK Electronics
PQ50/50-N97-DG400
$22.10
Available to order
Reference Price (USD)
1+
$22.10000
500+
$21.879
1000+
$21.658
1500+
$21.437
2000+
$21.216
2500+
$20.995
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality EPCOS - TDK Electronics B65981Q0400K097 Ferrite Cores, essential components for efficient power conversion and noise suppression in electronic circuits. These cores are widely used in transformers, inductors, and various EMI suppression applications. Their excellent magnetic properties ensure optimal performance in high-frequency operations. Ideal for power supplies, telecommunications, and automotive electronics. Contact us today for a quote and let our experts assist you with your specific requirements!
Specifications
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: PQ 50 x 50
- Material: N97
- Diameter: -
- Inductance Factor (Al): 400 nH
- Tolerance: ±10%
- Gap: Distributed Gapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.342
- Effective Length (le) mm: 113
- Effective Area (Ae) mm²: 332
- Minimum Core Cross Section (Amin) mm²: 314
- Effective Magnetic Volume (Ve) mm³: 37630
- Finish: Uncoated
- Height: 0.984" (25.00mm)
- Length: 1.969" (50.00mm)
- Width: 1.260" (32.00mm)
Related Products
Fair-Rite Products Corp.
3067990841
Ferroxcube
T102/66/15-3C90
Ferroxcube

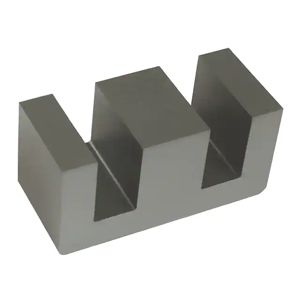

E16/8/5-3C94
EPCOS - TDK Electronics

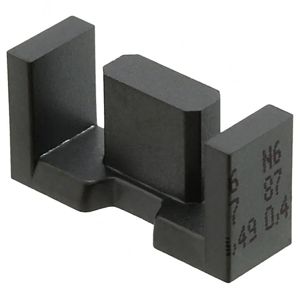

B66417U0100K187
EPCOS - TDK Electronics

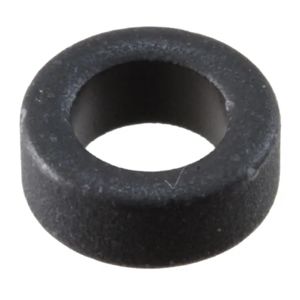

B64290P0683X065
EPCOS - TDK Electronics

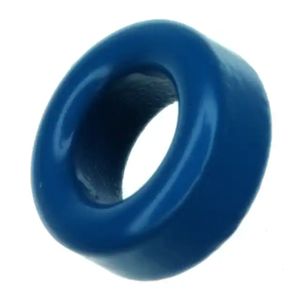

B64290L0038X065
Ferroxcube

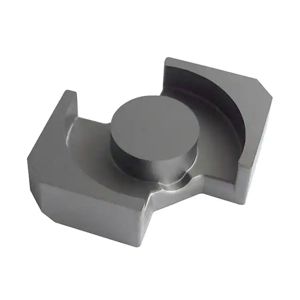

RM14/ILP-3C95
Ferroxcube

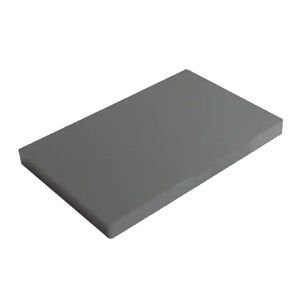

PLT18/10/2/S-3C95
EPCOS - TDK Electronics

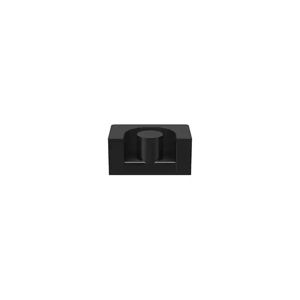

B65841A0063A038
