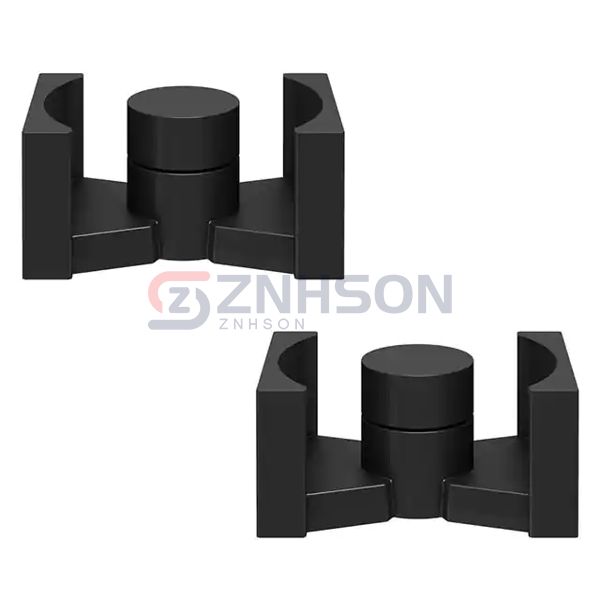

B65982Q0100K097
EPCOS - TDK Electronics
EPCOS - TDK Electronics
PQ65/60-N97-DG100
$55.48
Available to order
Reference Price (USD)
1+
$55.48000
500+
$54.9252
1000+
$54.3704
1500+
$53.8156
2000+
$53.2608
2500+
$52.706
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with premium EPCOS - TDK Electronics B65982Q0100K097 Ferrite Cores, designed for superior magnetic performance and thermal stability. Perfect for applications in switch-mode power supplies, RF transformers, and noise filters. These cores offer low core loss and high permeability, making them a reliable choice for demanding environments. Whether for industrial, medical, or consumer electronics, our Ferrite Cores deliver unmatched quality. Request a sample or inquire about bulk pricing now!
Specifications
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: PQ 65 x 60
- Material: N97
- Diameter: -
- Inductance Factor (Al): 100 nH
- Tolerance: ±10%
- Gap: Distributed Gapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.228
- Effective Length (le) mm: 137
- Effective Area (Ae) mm²: 171
- Minimum Core Cross Section (Amin) mm²: 531
- Effective Magnetic Volume (Ve) mm³: 81950
- Finish: Uncoated
- Height: 1.181" (30.00mm)
- Length: 2.559" (65.00mm)
- Width: 1.772" (45.00mm)
