B66347G0000X197
EPCOS - TDK Electronics
EPCOS - TDK Electronics

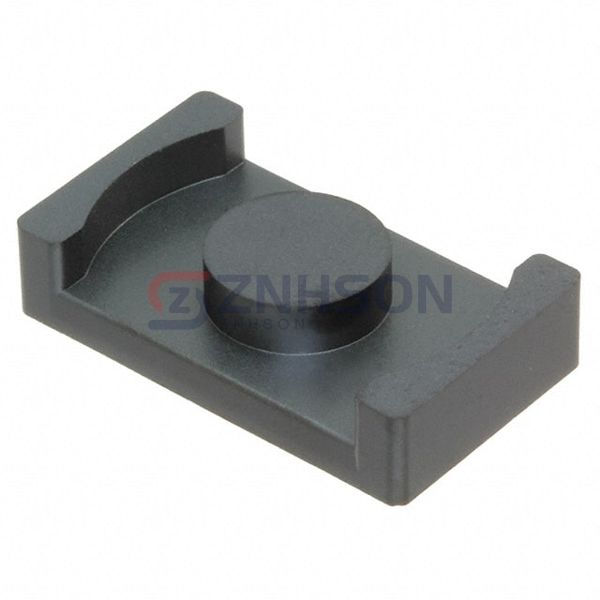

FERRITE CORE
$4.11
Available to order
Reference Price (USD)
1+
$2.96000
10+
$2.53700
25+
$1.90280
50+
$1.84980
100+
$1.63840
250+
$1.53264
500+
$1.42696
1,000+
$1.32125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit efficiency with EPCOS - TDK Electronics B66347G0000X197 Ferrite Cores, engineered for high-frequency applications and minimal energy loss. These cores are indispensable in power inductors, common-mode chokes, and broadband transformers. Their robust construction ensures durability and consistent performance. Suitable for renewable energy systems, automotive electronics, and more. Don't compromise on quality reach out to our sales team for personalized solutions and competitive pricing!
Specifications
- Product Status: Active
- Core Type: ER
- Supplier Device Package: ER 42 x 22 x 15
- Material: N97
- Diameter: -
- Inductance Factor (Al): -
- Tolerance: -
- Gap: -
- Effective Permeability (µe): -
- Initial Permeability (µi): 2300
- Core Factor (ΣI/A) mm-1: 0.58
- Effective Length (le) mm: 99
- Effective Area (Ae) mm²: 170
- Minimum Core Cross Section (Amin) mm²: 170
- Effective Magnetic Volume (Ve) mm³: 16800
- Finish: Uncoated
- Height: 0.858" (21.80mm)
- Length: 1.654" (42.00mm)
- Width: 0.591" (15.00mm)
