B6B-ZR(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.

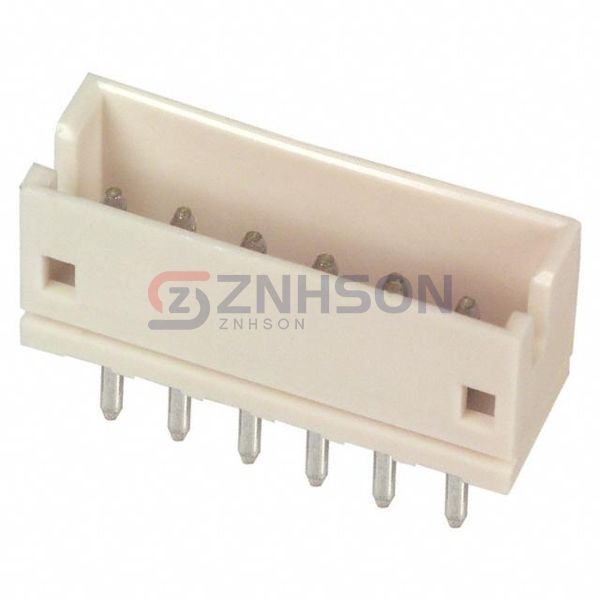

CONN HEADER VERT 6POS 1.5MM
$0.28
Available to order
Reference Price (USD)
1+
$0.28000
10+
$0.26200
100+
$0.18350
500+
$0.15732
1,000+
$0.13111
5,000+
$0.11238
10,000+
$0.10489
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The B6B-ZR(LF)(SN) JST Sales America Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.059" (1.50mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.094" (2.40mm)
- Contact Length - Post: 0.106" (2.69mm)
- Overall Contact Length: 0.256" (6.50mm)
- Insulation Height: 0.177" (4.50mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1A
- Voltage Rating: 50V
Related Products
Samtec Inc.
FTE-156-01-G-DH
Samtec Inc.
TSW-142-06-T-D
TE Connectivity AMP Connectors
1-178293-3
Samtec Inc.
FTSH-113-01-F-MT-TR
Samtec Inc.
FTS-120-03-L-DV-P-TR
Amphenol ICC (FCI)
95278-402B24LF
Samtec Inc.

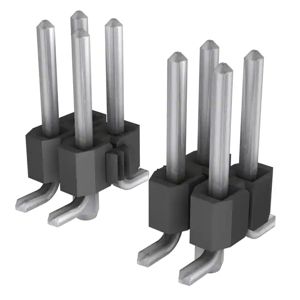

TSM-105-01-T-DV-A-P
Molex

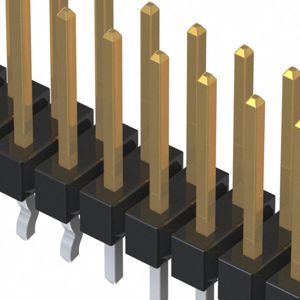

0702871154
