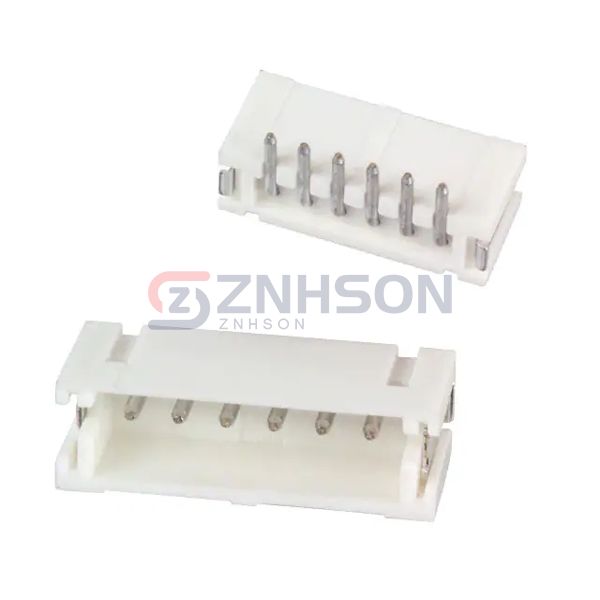

B6B-ZR-SM4-TF(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER SMD 6POS 1.5MM
$0.81
Available to order
Reference Price (USD)
1,000+
$0.40793
2,000+
$0.39558
3,000+
$0.37085
5,000+
$0.35849
10,000+
$0.33377
25,000+
$0.32140
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The B6B-ZR-SM4-TF(LF)(SN) JST Sales America Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.059" (1.50mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.197" (5.00mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T, Glass Filled
- Features: Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1A
- Voltage Rating: 50V
Related Products
TE Connectivity AMP Connectors
2355182-6
Preci-Dip
351-80-137-00-017101
Samtec Inc.
TSW-110-14-F-D
Preci-Dip
350-10-127-00-001101
Samtec Inc.
MMT-109-01-T-DH
Samtec Inc.
ZSS-110-01-T-D-450
Samtec Inc.
TMM-110-05-G-D-SM
Samtec Inc.

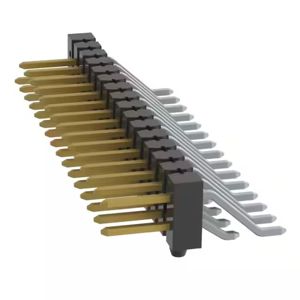

TSM-116-01-L-DH-A-032-P-TR
