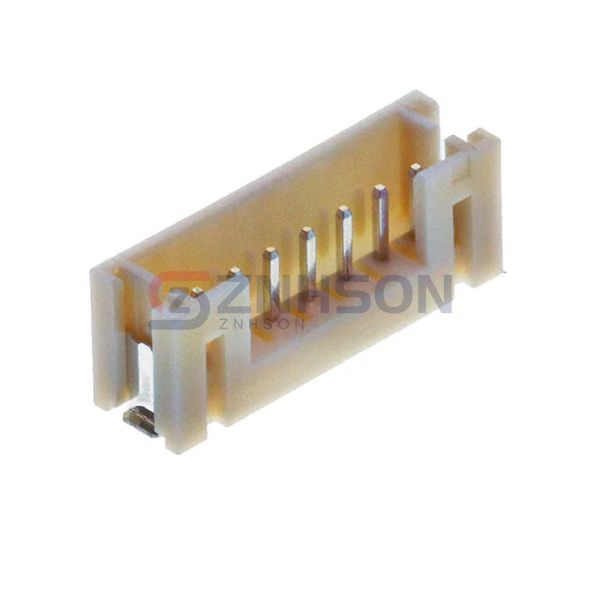

B7B-PH-SM4-TBT(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER SMD 7POS 2MM
$1.09
Available to order
Reference Price (USD)
1,000+
$0.58780
2,000+
$0.55106
3,000+
$0.53269
5,000+
$0.51432
10,000+
$0.48861
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The B7B-PH-SM4-TBT(LF)(SN) JST Sales America Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.130" (3.30mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.260" (6.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: Pick and Place, Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 2A
- Voltage Rating: 100V
