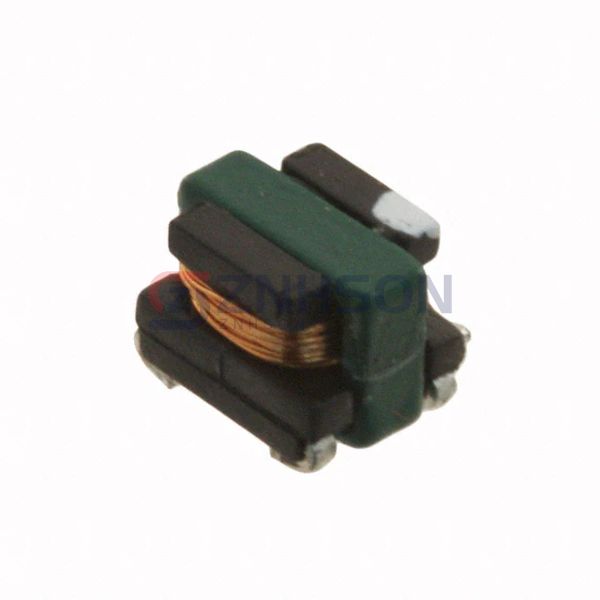

B82801A0824A100
EPCOS - TDK Electronics
EPCOS - TDK Electronics
CURR SENSE XFMR 1:100 SMD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electrical systems with EPCOS - TDK Electronics B82801A0824A100 Current Sense Transformers, engineered for optimal performance and durability. Featuring low phase shift, high linearity, and robust construction, these transformers are perfect for use in inverters, UPS systems, and renewable energy applications. Their versatility ensures seamless integration into your projects. Interested in learning more? Submit an inquiry now, and our team will provide you with the best solutions tailored to your needs.
Specifications
- Product Status: Obsolete
- Frequency Range: 50kHz ~ 1MHz
- Type: Invasive
- Current Rating (Amps): -
- Inductance: 820 µH
- ET (Volt-Time): -
- Turns Ratio - Primary:Secondary: 1:100
- Current Ratio: -
- DC Resistance (DCR): 2.5mOhm Primary, 8.7Ohm Secondary
- Ratings: -
- Mounting Type: Surface Mount
- Size / Dimension: 0.138" L x 0.185" W (3.50mm x 4.70mm)
- Height - Seated (Max): 0.138" (3.50mm)
- Termination Style: J Lead
