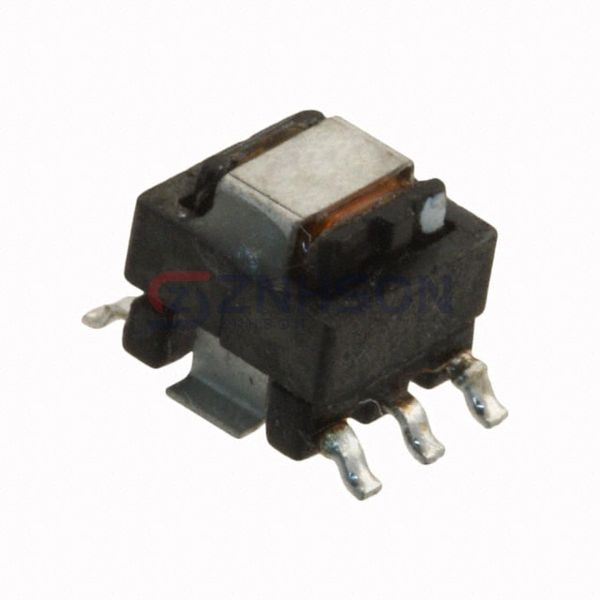

B82801B0803A020
EPCOS - TDK Electronics
EPCOS - TDK Electronics
CURR SENSE XFMR 1:20 SMD
$3.08
Available to order
Reference Price (USD)
900+
$1.63149
1,800+
$1.44412
6,300+
$1.32530
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your current sensing capabilities with EPCOS - TDK Electronics B82801B0803A020 Current Sense Transformers, offering unmatched precision and reliability. These transformers are designed with high saturation resistance and minimal insertion loss, suitable for automotive, telecommunications, and medical equipment. Their advanced technology ensures accurate measurements in demanding environments. Ready to find the perfect fit for your application? Get in touch with us today for expert advice and competitive pricing.
Specifications
- Product Status: Active
- Frequency Range: 50kHz ~ 1MHz
- Type: Invasive
- Current Rating (Amps): -
- Inductance: 80 µH
- ET (Volt-Time): -
- Turns Ratio - Primary:Secondary: 1:20
- Current Ratio: -
- DC Resistance (DCR): 0.8mOhm Primary, 400mOhm Secondary
- Ratings: -
- Mounting Type: Surface Mount
- Size / Dimension: 0.280" L x 0.320" W (7.11mm x 8.13mm)
- Height - Seated (Max): 0.200" (5.08mm)
- Termination Style: Gull Wing
Related Products
VACUUMSCHMELZE
T60404E4626X502
TDK Corporation

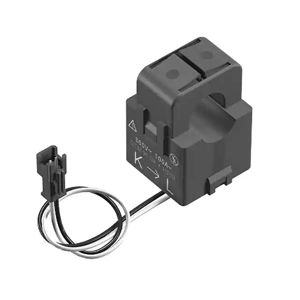

CCT323047-100-16-00
Murata Power Solutions Inc.

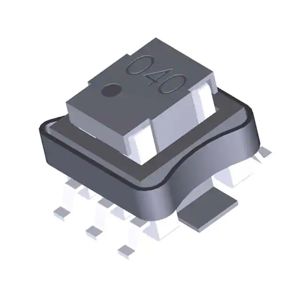

53030C
VACUUMSCHMELZE

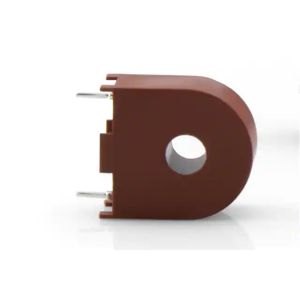

T60404E4658X039
TDK Corporation

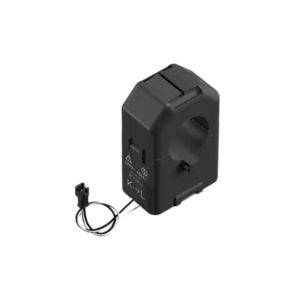

CCT406393-600-36-00
Hammond Manufacturing

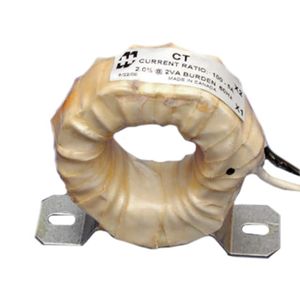

CT200A
Bourns Inc.

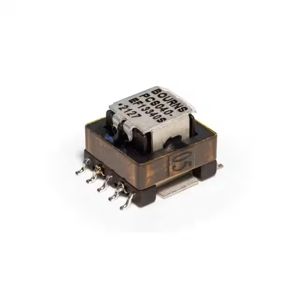

PCS040-EF13760S
Triad Magnetics

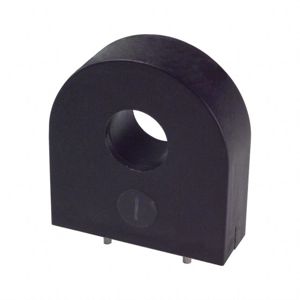

CST206-3T
Talema Group LLC

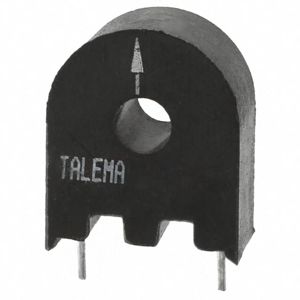

AX-1500
