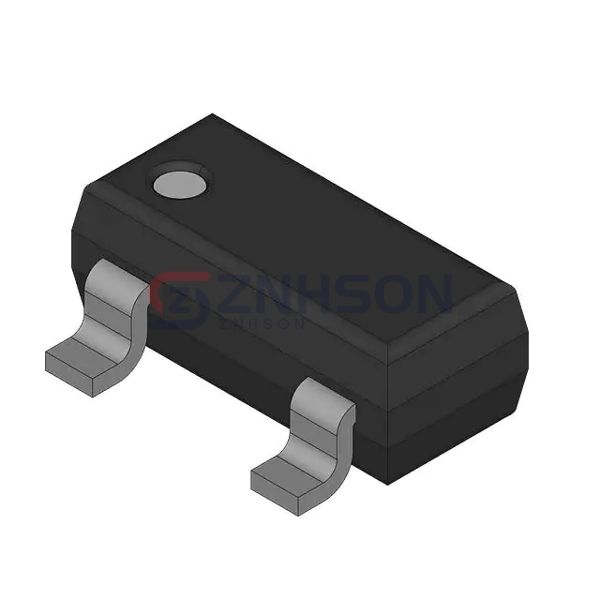

BAT54A/6235
NXP USA Inc.
NXP USA Inc.
RECTIFIER DIODE, SCHOTTKY
$0.03
Available to order
Reference Price (USD)
1+
$0.03000
500+
$0.0297
1000+
$0.0294
1500+
$0.0291
2000+
$0.0288
2500+
$0.0285
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAT54A/6235 by NXP USA Inc. is a high-performance diode in the Discrete Semiconductor Products category, specifically designed for Diodes - Rectifiers - Arrays applications. Offering robust construction and advanced features, this product is perfect for engineers and designers seeking reliable components. The BAT54A/6235 excels in efficiency, with minimal power loss and high-speed switching capabilities. Whether for industrial machinery or consumer electronics, NXP USA Inc. delivers unmatched quality. Submit your inquiry today to find out how this product can meet your needs!
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Anode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io) (per Diode): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 800 mV @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3
