BAT760,115
Nexperia USA Inc.
Nexperia USA Inc.

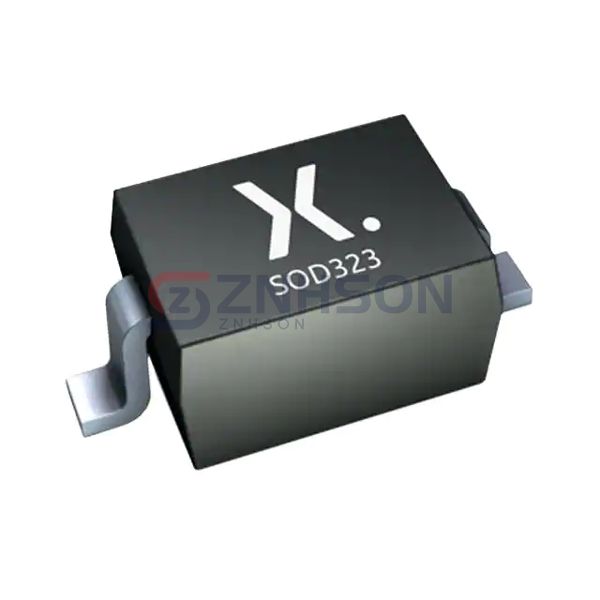

DIODE SCHOTTKY 20V 1A SOD323
$0.48
Available to order
Reference Price (USD)
3,000+
$0.12350
6,000+
$0.11700
15,000+
$0.11050
30,000+
$0.10725
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience next-level performance with Nexperia USA Inc.'s BAT760,115 Single Rectifier Diodes, designed for high-power applications. These diodes provide excellent rectification efficiency, making them suitable for solar panels, electric vehicles, and UPS systems. Key features include high current density, fast recovery, and superior thermal management. Nexperia USA Inc. stands by its products with rigorous testing and quality assurance. Need assistance? Contact our sales team now!
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 1A (DC)
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 50 µA @ 15 V
- Capacitance @ Vr, F: 25pF @ 5V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-76, SOD-323
- Supplier Device Package: SOD-323
- Operating Temperature - Junction: 125°C (Max)
