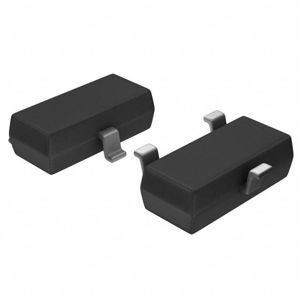

BAW56Q-13-F
Diodes Incorporated
Diodes Incorporated
SWITCHING DIODE SOT23 T&R 10K
$0.03
Available to order
Reference Price (USD)
1+
$0.02882
500+
$0.0285318
1000+
$0.0282436
1500+
$0.0279554
2000+
$0.0276672
2500+
$0.027379
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience unparalleled performance with the BAW56Q-13-F from Diodes Incorporated, a key player in the Diodes - Rectifiers - Arrays segment of Discrete Semiconductor Products. These diodes are engineered for precision and durability, offering features such as fast recovery time and high current density. The BAW56Q-13-F is perfect for applications requiring reliable rectification and array configurations. Diodes Incorporated ensures every product meets stringent quality controls. Contact us today to request a sample or to discuss bulk purchase options!
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Anode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 75 V
- Current - Average Rectified (Io) (per Diode): 300mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 150 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 4 ns
- Current - Reverse Leakage @ Vr: 2.5 µA @ 75 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3
