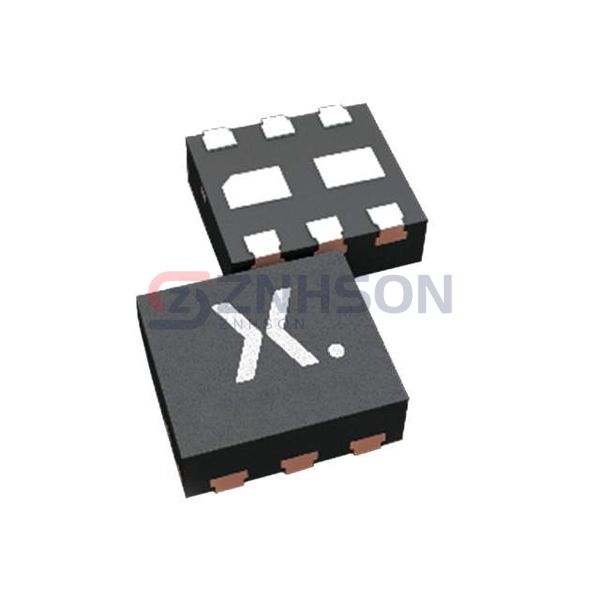

BAW56SRAZ
Nexperia USA Inc.
Nexperia USA Inc.
DIODE ARRAY GP 90V 375MA 6DFN
$0.41
Available to order
Reference Price (USD)
5,000+
$0.05850
10,000+
$0.05070
25,000+
$0.04810
50,000+
$0.04550
125,000+
$0.04290
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit designs with the BAW56SRAZ by Nexperia USA Inc., a standout in the Diodes - Rectifiers - Arrays field under Discrete Semiconductor Products. These diodes are built to provide reliable rectification and array functionality, ensuring optimal performance in various settings. The BAW56SRAZ boasts low leakage current and high reverse voltage, making it a versatile component for multiple applications. Nexperia USA Inc.'s commitment to excellence guarantees products you can trust. Contact us now for pricing and availability!
Specifications
- Product Status: Active
- Diode Configuration: 2 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 90 V
- Current - Average Rectified (Io) (per Diode): 375mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 150 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 4 ns
- Current - Reverse Leakage @ Vr: 500 nA @ 80 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Surface Mount
- Package / Case: 6-XFDFN Exposed Pad
- Supplier Device Package: DFN1412-6
