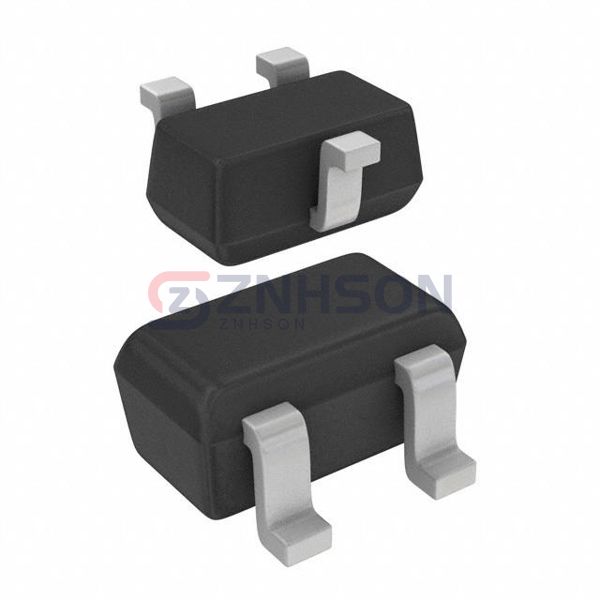

BAW56T,115
NXP USA Inc.
NXP USA Inc.
DIODE ARRAY GP 90V 150MA SC75
$0.02
Available to order
Reference Price (USD)
1+
$0.02000
500+
$0.0198
1000+
$0.0196
1500+
$0.0194
2000+
$0.0192
2500+
$0.019
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAW56T,115 by NXP USA Inc. is a high-performance diode in the Discrete Semiconductor Products category, specifically designed for Diodes - Rectifiers - Arrays applications. Offering robust construction and advanced features, this product is perfect for engineers and designers seeking reliable components. The BAW56T,115 excels in efficiency, with minimal power loss and high-speed switching capabilities. Whether for industrial machinery or consumer electronics, NXP USA Inc. delivers unmatched quality. Submit your inquiry today to find out how this product can meet your needs!
Specifications
- Product Status: Obsolete
- Diode Configuration: 1 Pair Common Anode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 90 V
- Current - Average Rectified (Io) (per Diode): 150mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 150 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 4 ns
- Current - Reverse Leakage @ Vr: 500 nA @ 80 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Surface Mount
- Package / Case: SC-75, SOT-416
- Supplier Device Package: SC-75
