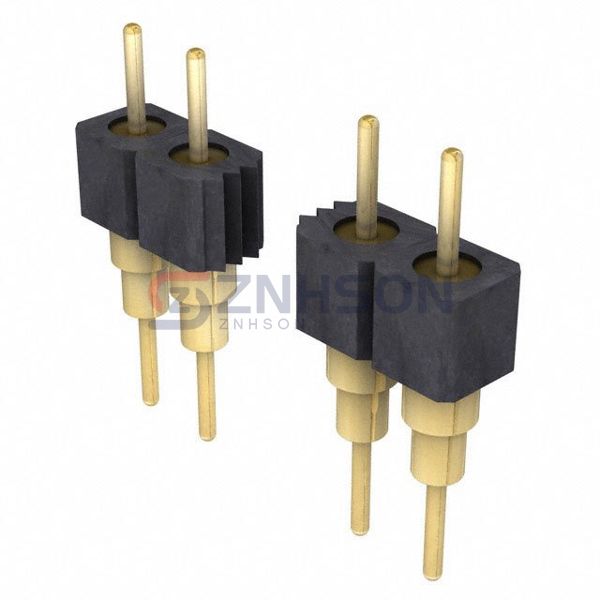

BBS-108-G-A
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 8POS 2.54MM
$3.83
Available to order
Reference Price (USD)
1+
$2.96000
10+
$2.83700
25+
$2.60040
50+
$2.48220
100+
$2.36400
250+
$2.06852
500+
$2.00940
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BBS-108-G-A Samtec Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.125" (3.18mm)
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: 0.460" (11.68mm)
- Insulation Height: 0.211" (5.35mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: Nickel
- Contact Material: -
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
