BC020-08-A-0200-0300-L-G
GCT
GCT

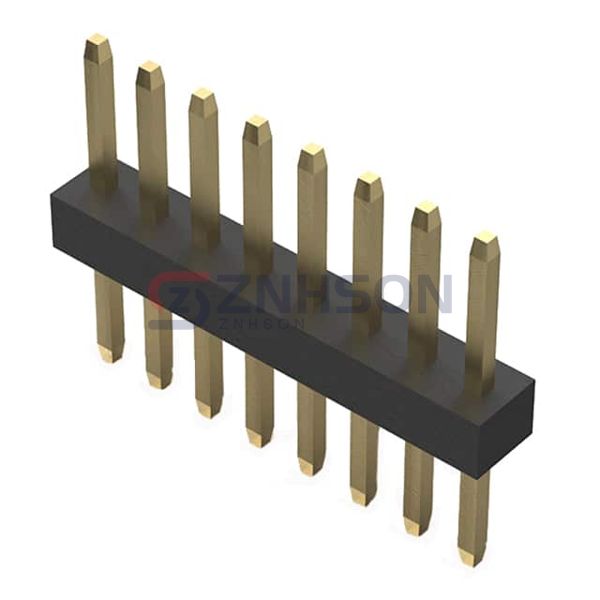

8POS 1.0MM PITCH PIN HEADER, SIL
$1.37
Available to order
Reference Price (USD)
1+
$1.37000
500+
$1.3563
1000+
$1.3426
1500+
$1.3289
2000+
$1.3152
2500+
$1.3015
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BC020-08-A-0200-0300-L-G GCT Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.079" (2.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.236" (6.00mm)
- Insulation Height: 0.039" (1.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC/DC
