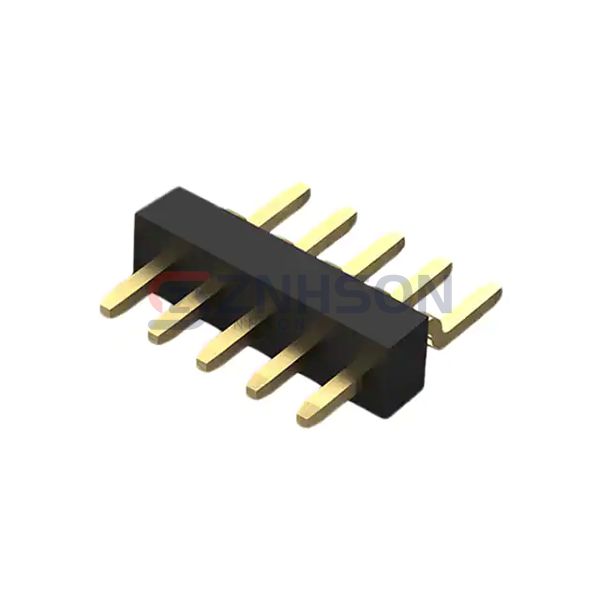

BC034-05-A-V-0150-L-C
GCT
GCT
5POS 1.0MM PITCH HEADER, SIL, SM
$1.42
Available to order
Reference Price (USD)
1+
$1.42000
500+
$1.4058
1000+
$1.3916
1500+
$1.3774
2000+
$1.3632
2500+
$1.349
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BC034-05-A-V-0150-L-C GCT Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.059" (1.50mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC/DC
Related Products
Preci-Dip
892-80-060-20-002101
Preci-Dip
350-10-128-00-206101
Preci-Dip
852-80-046-20-001101
Molex
0533985007
Molex
0015912780
Molex
0026503089
Harwin Inc.
M80-7533442

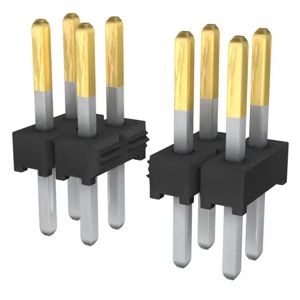

Samtec Inc.
TMM-107-03-L-D

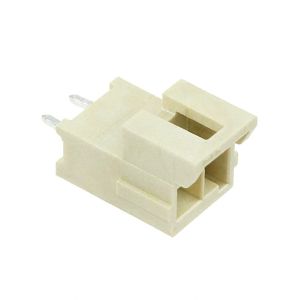

Molex
