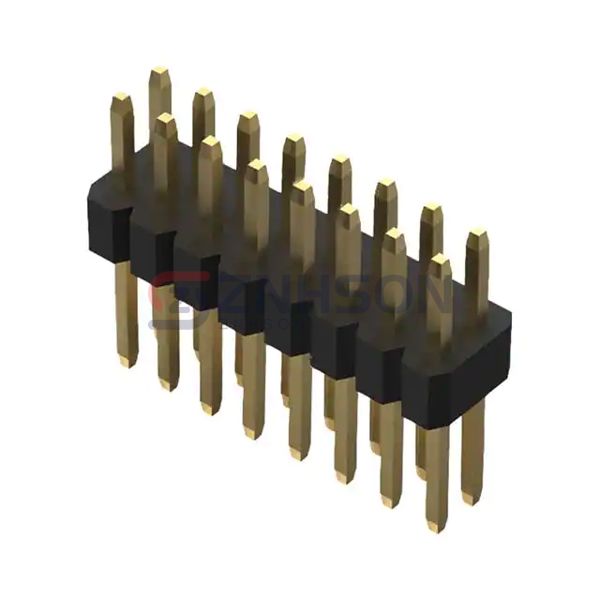

BC035-16-A-0200-0300-L-G
GCT
GCT
16W, 1.0MM PITCH PIN HDR, DIL, T
$1.40
Available to order
Reference Price (USD)
1+
$1.40000
500+
$1.386
1000+
$1.372
1500+
$1.358
2000+
$1.344
2500+
$1.33
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BC035-16-A-0200-0300-L-G GCT Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.079" (2.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.244" (6.20mm)
- Insulation Height: 0.047" (1.20mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC/DC
