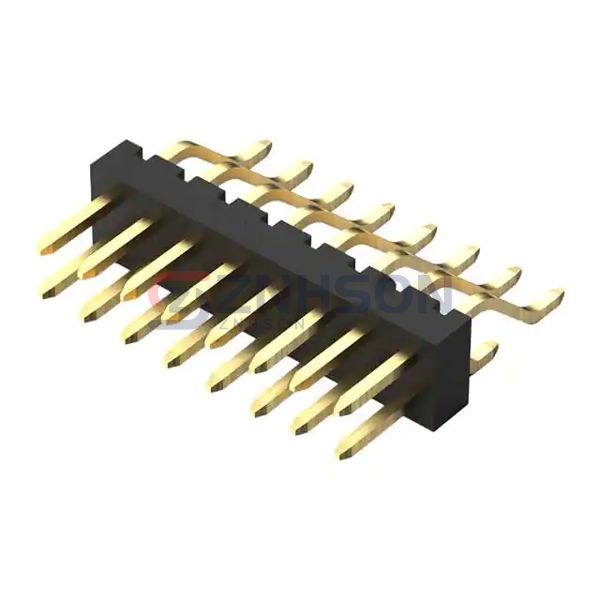

BF135-16-A-0400-0700-0400-L-C
GCT
GCT
16POS, 2MM PITCH PIN HDR, DIL, S
$0.99
Available to order
Reference Price (USD)
1+
$0.99000
500+
$0.9801
1000+
$0.9702
1500+
$0.9603
2000+
$0.9504
2500+
$0.9405
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BF135-16-A-0400-0700-0400-L-C GCT Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.157" (4.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A per Contact
- Voltage Rating: 250VAC/DC
Related Products
Hirose Electric Co Ltd
DF13-5P-1.25H(75)
Samtec Inc.
BKT-117-01-L-V-P-TR
Samtec Inc.
TSM-116-03-T-SV-P-TR
TE Connectivity AMP Connectors
1-292230-8
Samtec Inc.
FTSH-116-01-S-DV
Samtec Inc.
TMM-115-05-T-D-SM-P
Molex
0015800269
Samtec Inc.
FTMH-132-03-L-DV-ES-A-P-TR
Samtec Inc.

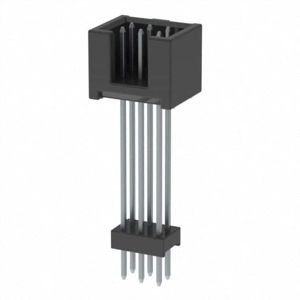

ZSS-103-08-T-D-1165
