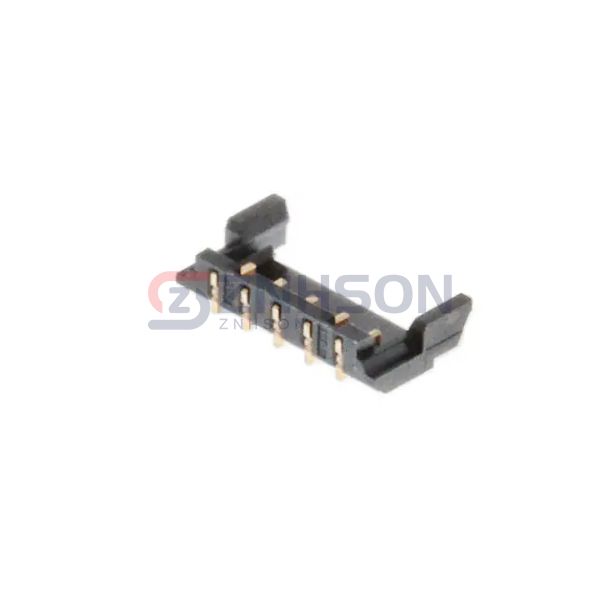

BM05B-ADHKS-GAN-ETB(HF)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER SMD R/A 5POS 1.3MM
$0.62
Available to order
Reference Price (USD)
1+
$0.62000
500+
$0.6138
1000+
$0.6076
1500+
$0.6014
2000+
$0.5952
2500+
$0.589
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BM05B-ADHKS-GAN-ETB(HF) JST Sales America Inc. Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the JST Sales America Inc. difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.051" (1.30mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.069" (1.75mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): 3A
- Voltage Rating: 30V
