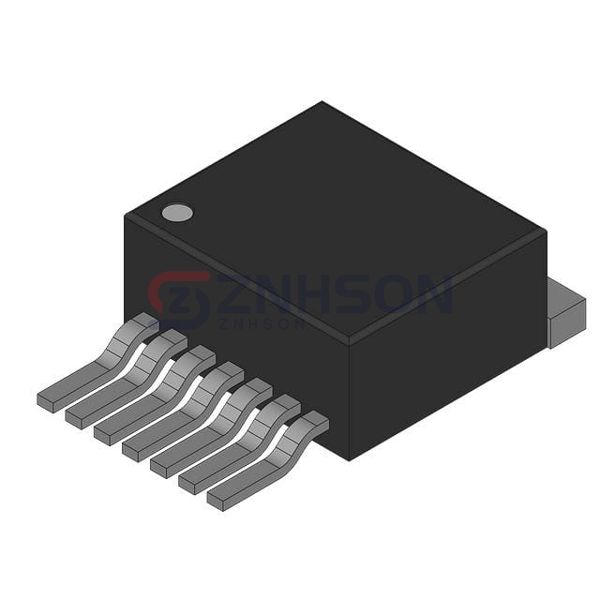

BTN7970B
Infineon Technologies
Infineon Technologies
BTN7970 - INTEGRATED HALF-BRIDGE
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience next-generation power control with Infineon Technologies BTN7970B bridge driver ICs. These PMICs deliver exceptional thermal management, fast switching speeds, and precise dead-time control for demanding power conversion tasks. Ideal for server power supplies, welding equipment, and renewable energy systems, they feature built-in diagnostics and configurable parameters for optimal system integration. Their robust construction ensures long-term reliability even in extreme operating conditions. Get customized solutions for your specific requirements - send us your project details today.
Specifications
- Product Status: Active
- Output Configuration: Half Bridge
- Applications: General Purpose
- Interface: Logic, PWM
- Load Type: Inductive
- Technology: DMOS
- Rds On (Typ): 9mOhm LS, 7mOhm HS
- Current - Output / Channel: 70A
- Current - Peak Output: 70A
- Voltage - Supply: 8V ~ 18V
- Voltage - Load: 8V ~ 18V
- Operating Temperature: -40°C ~ 150°C (TJ)
- Features: Charge Pump, Status Flag
- Fault Protection: Current Limiting, Over Current, Over Temperature, Over Voltage, Short Circuit
- Mounting Type: Surface Mount
- Package / Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
- Supplier Device Package: PG-TO263-7-1
