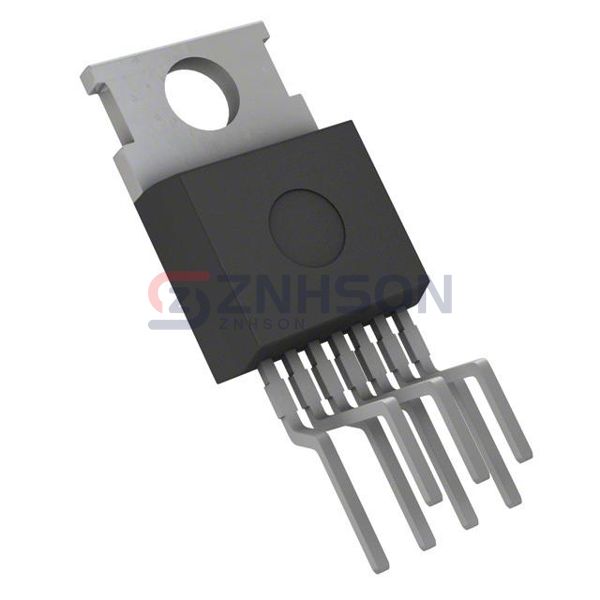

BTS7960P
Infineon Technologies
Infineon Technologies
IC NOVALITHIC 1/2 BRIDGE TO220-7
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Infineon Technologies BTS7960P bridge drivers deliver intelligent power management for sophisticated electronic systems. These PMICs feature synchronous rectification capability, adjustable switching frequency, and comprehensive fault protection suitable for medical equipment and aerospace applications. The advanced gate drive technology ensures minimal power dissipation while maintaining precise control over power switches. With both full and half-bridge configurations available, they offer design versatility across multiple voltage classes. For OEM pricing and delivery options, please submit your inquiry to our sales department.
Specifications
- Product Status: Obsolete
- Output Configuration: Half Bridge
- Applications: DC Motors, General Purpose
- Interface: Logic
- Load Type: Inductive
- Technology: DMOS
- Rds On (Typ): 9mOhm LS, 7mOhm HS
- Current - Output / Channel: 40A
- Current - Peak Output: 60A
- Voltage - Supply: 5.5V ~ 27.5V
- Voltage - Load: 5.5V ~ 27.5V
- Operating Temperature: -40°C ~ 150°C (TJ)
- Features: Latch Function, Slew Rate Controlled, Status Flag
- Fault Protection: Current Limiting, Over Temperature, Short Circuit, UVLO
- Mounting Type: Through Hole
- Package / Case: TO-220-7 Formed Leads
- Supplier Device Package: P-TO220-7
