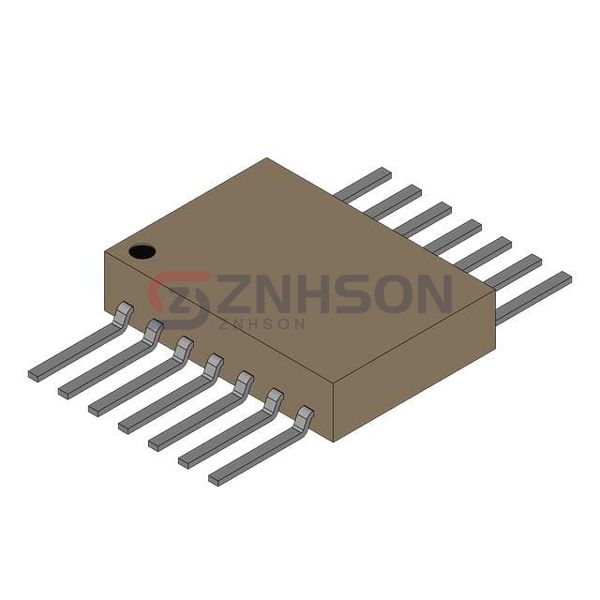

CD4093BK3
Harris Corporation
Harris Corporation
CMOS QUAD 2-INPUT NAND GATE
$20.17
Available to order
Reference Price (USD)
1+
$20.17000
500+
$19.9683
1000+
$19.7666
1500+
$19.5649
2000+
$19.3632
2500+
$19.1615
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Trust CD4093BK3 Logic Gates and Inverters by Harris Corporation to deliver consistent results in any digital setup. Engineered with latch-up immunity, programmable logic, and moisture-resistant coatings, these ICs shine in agricultural tech, HVAC controls, and edge computing. Harris Corporation is your global partner for quality components. Have questions? We re here to help ask about MOQs and certifications!
Specifications
- Product Status: Active
- Logic Type: NAND Gate
- Number of Circuits: 4
- Number of Inputs: 2
- Features: Schmitt Trigger
- Voltage - Supply: 3V ~ 18V
- Current - Quiescent (Max): 20 µA
- Current - Output High, Low: 6.8mA, 6.8mA
- Logic Level - Low: 2.8V ~ 9.6V
- Logic Level - High: 3.6V ~ 12.7V
- Max Propagation Delay @ V, Max CL: 130ns @ 15V, 50pF
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Supplier Device Package: 14-CFP
- Package / Case: 14-CFlatPack
