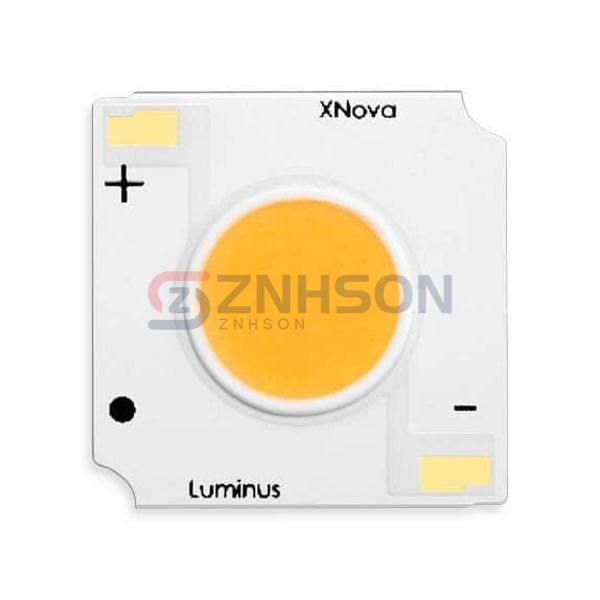

CHM-9-40-90-36-AC00-F2-2
Luminus Devices Inc.
Luminus Devices Inc.
LED COB CHM9 NEUTRAL WHT SQUARE
$3.17
Available to order
Reference Price (USD)
2,400+
$3.16710
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Light up your projects with Luminus Devices Inc. CHM-9-40-90-36-AC00-F2-2, a comprehensive range of LED COBs, Engines, Modules, and Strips. These products are designed for optimal performance with features such as instant start, low heat generation, and versatile mounting options. Applications include signage, horticulture, and emergency lighting. Luminus Devices Inc. prides itself on delivering cutting-edge lighting technology. Reach out to us now to learn more and place your order.
Specifications
- Product Status: Active
- Type: Chip On Board (COB)
- Color: White, Neutral
- CCT (K): 4000K 2-Step MacAdam Ellipse
- Wavelength: -
- Configuration: Square
- Luminous Flux @ Current/Temperature: 1270lm (Typ)
- Current - Test: 360mA
- Temperature - Test: 85°C
- Voltage - Forward (Vf) (Typ): 35V
- Lumens/Watt @ Current - Test: 101 lm/W
- Current - Max: 720mA
- CRI (Color Rendering Index): 90
- Viewing Angle: 120°
- Features: -
- Size / Dimension: 13.50mm L x 13.50mm W
- Height: 1.37mm
- Light Emitting Surface (LES): 9.00mm Dia
- Lens Type: Flat
