CI4402M1VR0-NH
Cvilux USA
Cvilux USA
2 POS 1.25MM(.049) WIRE TO BOARD
$0.23
Available to order
Reference Price (USD)
1+
$0.23000
500+
$0.2277
1000+
$0.2254
1500+
$0.2231
2000+
$0.2208
2500+
$0.2185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CI4402M1VR0-NH Cvilux USA Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust Cvilux USA for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Tab
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.189" (4.80mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA6T), Nylon 6T, Halogen Free
- Features: Solder Retention
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1A
- Voltage Rating: 125VAC
Related Products
Preci-Dip
890-18-026-10-001101
Samtec Inc.
TMM-120-01-F-D
Samtec Inc.
ZSS-105-05-S-D-880
Samtec Inc.
FTS-103-02-L-D
Amphenol ICC (FCI)

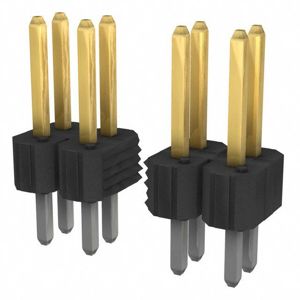

67997-720HLF
Samtec Inc.

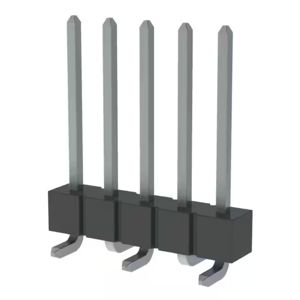

TSM-105-03-T-SV-P
Samtec Inc.

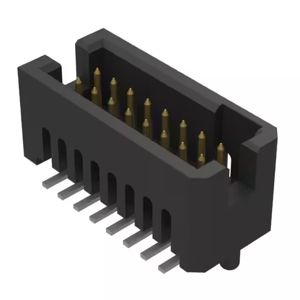

TFC-108-02-L-D-A
Samtec Inc.

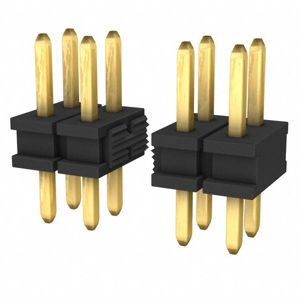

TMMH-125-04-G-D
